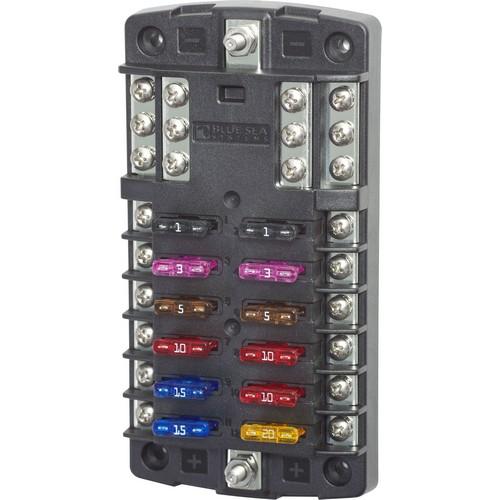

Blue Sea Systems, 5031, ST Blade Fuse Block - 12 Circuits with Negative Bus

Model: 5031
GTIN: 00632085050313
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Jul 2nd - Jul 8th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$112.18 $86.29

Manufacturer Info

Other products

ST Blade Fuse Block - 12 Circuits with Negative Bus

Consolidates branch circuits and in-line fuses

Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO and ATC fast acting blade fuses
Fuses sold separately
Wiring Schematic | Download
Dimensioned Drawing | Download

Specifications
Circuits	12
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N·m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
Weight	0.65lb (0.29 kg)

Optional Accessories
	Any ATO-ATC Fuses
	Any easyID Fuses
	5287	ATC Fuse Kit - 6-Piece
	5290	easyID Fuse Kit
	8214	Black 60 Label Set
	8217	Gray 60 Label Set

Works With
4303	WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position
4305	WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position
4307	WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position
