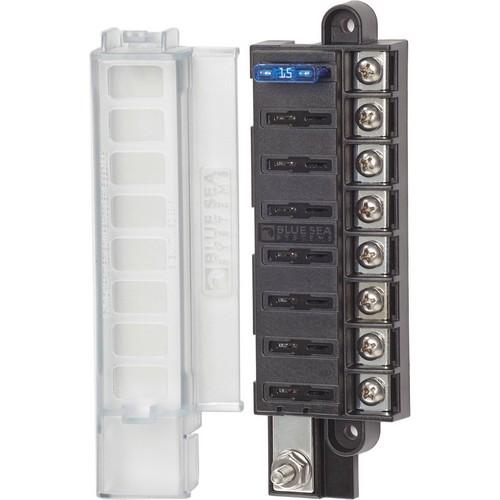

Blue Sea Systems, 5046, ST Blade Compact Fuse Blocks - 8 Circuits

Model: 5046
GTIN: 00632085050467
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Jul 2nd - Jul 8th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$96.12 $73.94

Manufacturer Info

Other products

ST Blade Compact Fuse Blocks - 8 Circuits

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint.

Ignition protected when cover is secure ûmeets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 8 write-on circuit labels
Fuses sold separately
Wiring Diagram | Download
Dimensioned Drawing | Download

Specifications
Circuits	8
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Terminal Stud Torque	24 in-lb (2.71 Nm)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Scews with captive star lock washer
Terminal Stud Size	#10-32
Weight	0.40lb (0.18 kg)
