Blue Sea Systems, 6008, m-Series Selector 3 Position Battery Switch - Red

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 6008, m-Series Selector 3 Position Battery Switch - Red

Model: 6008
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Jun 3rd - Jun 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$104.84 $80.65

Manufacturer Info

Other products

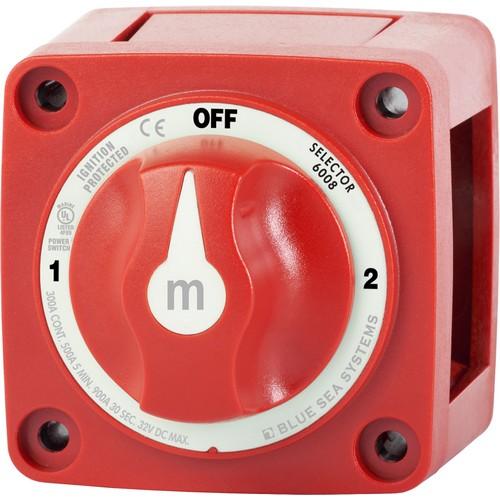

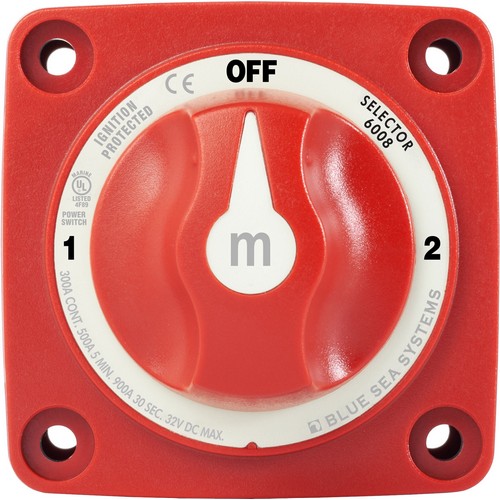

m-Series Selector 3 Position Battery Switch - Red

Switches a single battery to a single load group.

Ignition protectedùsafe for installation aboard gasoline powered boats

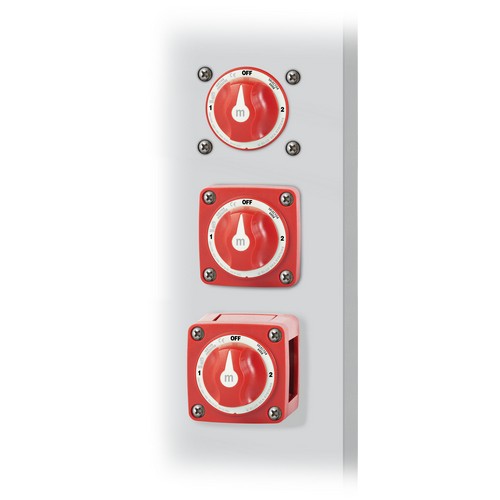

Case design allows surface or rear panel mounting
Instructions | Download
Dimensioned Drawing | Download

Specifications
Switch Type	Selector 3 Position
Color	Red
Switch Positions	3
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 Min)
Starting Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²) 4/0 AWG (130mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Switching Rating	25A
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.77lb (0.35 kg)
