Blue Sea Systems, 2138, Medium Duty Push Button Reset Only Circuit Breaker - 15A

Model: 2138
GTIN: 00632085021382
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 13th - May 19th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$96.10 $73.92

Manufacturer Info

Other products

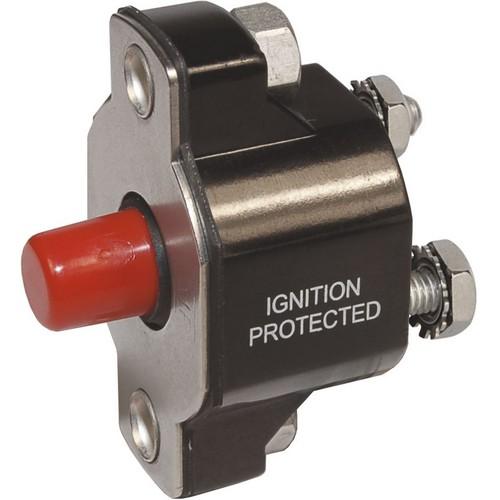

Medium Duty Push Button Reset Only Circuit Breaker - 15A

Weatherproof
Can be used as Main, Branch, or 24 hour circuit protection
Compact design enables high density circuit protection configurations
Push-to-reset operation
"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
Medium Duty Dimension Drawing | Download
Medium Duty Cutout Template | Download

Specifications
Amperage	15A
Maximum Voltage	120V AC 32V DC
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Stud	#10-32 Stainless Steel
Terminal Stud Torque	30 in-lb (3.39 Nm)
Interrupt Capacity	3000A @ 120V AC 5000A @ 32V DC
Minimum Operating Temperature	-54° C
Maximum Operating Temperature	74° C
Mounting Screw Thread	#8-32
Weight	0.16lb (0.07 kg)
