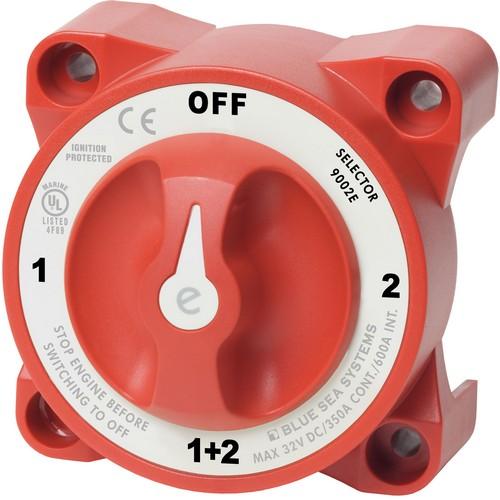

Blue Sea Systems, 9002e, e-Series Selector Battery Switch with AFD

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 9002e, e-Series Selector Battery Switch with AFD

Model: 9002e
GTIN: 00632085900250
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Jun 1st - Jun 7th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$112.36 $86.43

Manufacturer Info

Other products

e-Series Selector Battery Switch with AFD

Switches isolated battery banks to all loads or combines battery banks to all loads

Includes AFD (Alternator Field Disconnect)
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protectedùsafe for installation aboard gasoline powered boats

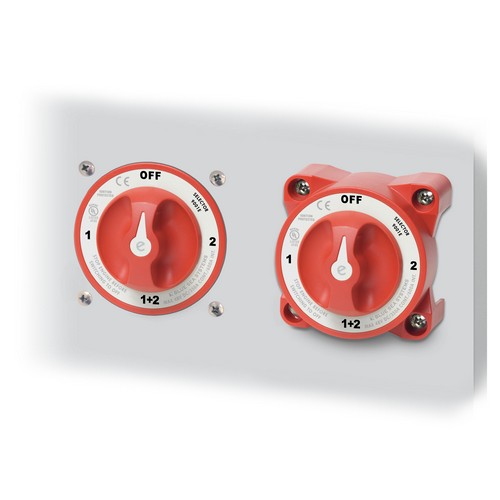

Case design allows surface or rear panel mounting
Instructions | Download
Mounting Diagram | Download

Specifications
Switch Type	Selector 4 Position
Color	Red
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	Yes
Maximum Voltage	32V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	325A
Intermittent Rating	600A (5 min)
Starting Rating 30 sec	1200A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper
Switching Rating	25A
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.15lb (0.52 kg)
Weight	1.30lb (0.59 kg)
