Blue Sea Systems, 5510e, e-Series Dual Circuit Battery Switch

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 5510e, e-Series Dual Circuit Battery Switch

Model: 5510e
GTIN: 00632085551056
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Jun 1st - Jun 7th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$107.94 $83.03

Manufacturer Info

Other products

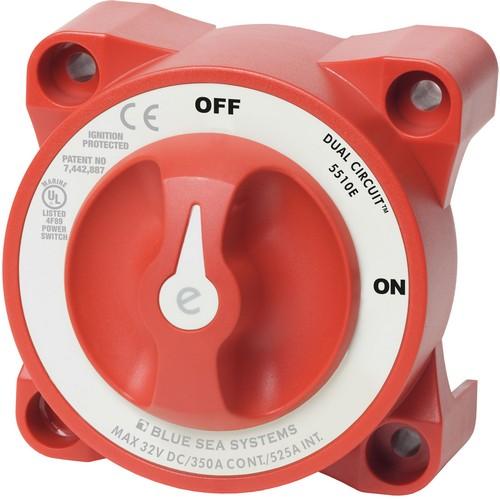

e-Series Dual Circuit Battery Switch

Simultaneously switches two isolated battery banks

Ignition protectedùsafe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Instructions | Download
Mounting Diagram | Download

Specifications
Switch Type	Dual Circuit
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	350A
Intermittent Rating	525A (5 min)
Starting Rating 30 sec	700A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper
Switching Rating	25A
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.16lb (0.53 kg)
Weight	1.30lb (0.59 kg)
