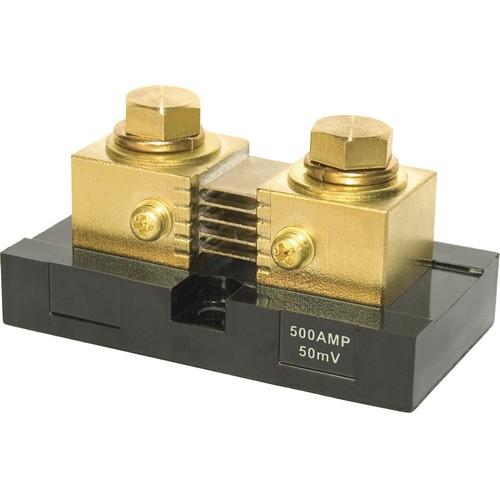

DC Digital Current Shunt - 500A- For use with DC Ammeters
- For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
- Dimensioned Drawing | Download
rated current under normal conditions
| Specifications |
|---|
| Continuous Duty | 66% of Rated Current |
| Full Scale | 50 Milivolts |
| Intermittent Duty | 300% @ 3 Seconds 100% @ 5 Minutes |
| Ratio | 500A DC/50mV DC |
| Recommended Torque | 7 in-lb (0.79 N·m) Brass Fittings 190 in-lb (21.47 N·m) M10 Bolts |
| Shunt Type | Resistive, Manganin Metal Element |
| Weight | 0.71lb (0.32 kg) |
| Included With |
|---|
| 8236 | DC Digital Ammeter - 500 to 500A |
| 8248 | DC Digital Multi-Function Meter with Alarm |
| 1832 | M2 DC Ammeter |
| 1830 | M2 DC Multimeter with SoC |
