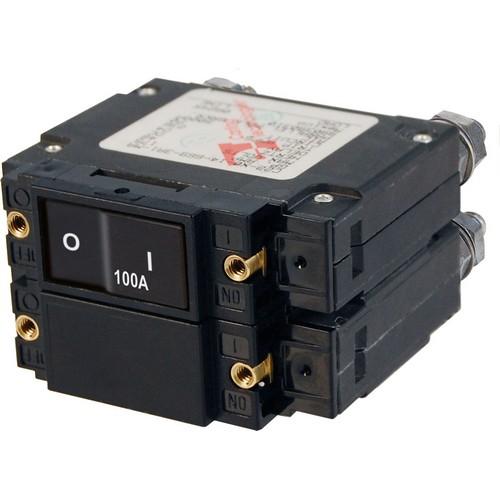

Blue Sea Systems, 7564, C-Series Flat Rocker Circuit Breaker - Double Pole 100A AC

Model: 7564
GTIN: 00632085075644
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 13th - May 19th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$125.86 $96.82

Manufacturer Info

Other products

C-Series Flat Rocker Circuit Breaker - Double Pole 100A AC

5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
Circuit breakers will trip all poles if any one pole trips
"Trip Free" design cannot be held "ON" during fault current condition
Dimensioned Drawing | Download
Cutout Templates | Download

Specifications
Amperage	100A AC
Actuator Style	Flat Rocker
Poles	2
Maximum Voltage	120V AC 240V AC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Terminal Stud	1/4-20 Tin-Plated Brass
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	5000A @ 48V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.64lb (0.29 kg)
