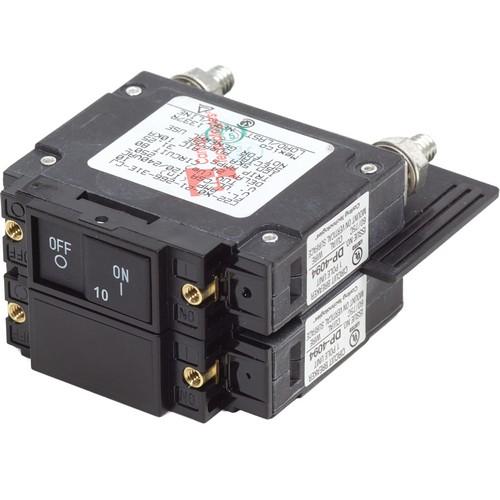

UL-489 Circuit Breaker - 10A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
| Specifications |
| Amperage | 10A AC |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Maximum Voltage | 240V AC |
| Circuit Breaker Type | Magnetic Hydraulic—Trip free |
| Terminal Type | 1/4"-20 Stud Tin Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 8 in-lb (0.9 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.18lb (0.08 kg) |
