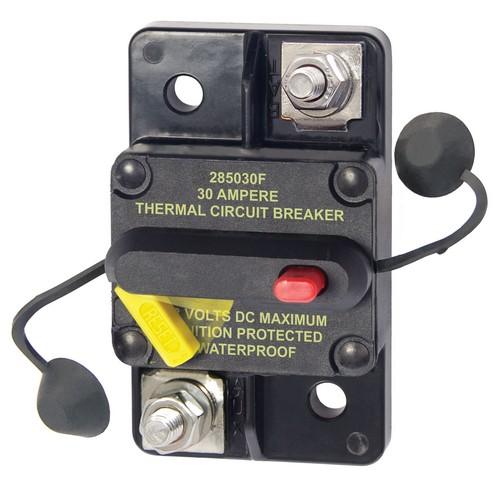

Blue Sea Systems, 7181, 285-Series Circuit Breaker - Surface Mount 30A

Model: 7181
GTIN: 00632085071813
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 13th - May 19th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$104.50 $80.39

Manufacturer Info

Other products

285-Series Circuit Breaker - Surface Mount 30A

Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
Trip Free - cannot be held closed after trip

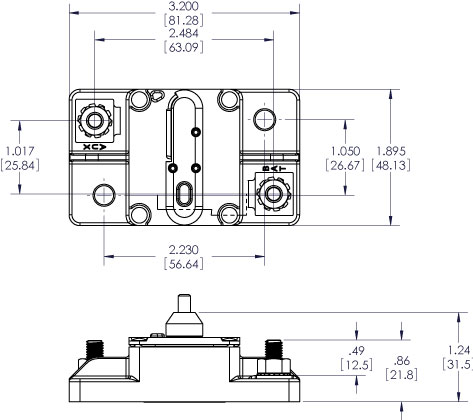

Dimensioned Drawing | Download

* Do not use as a switch where high inrush currents are expected.

Specifications
Amperage	30A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Weight	0.50lb (0.23 kg)
