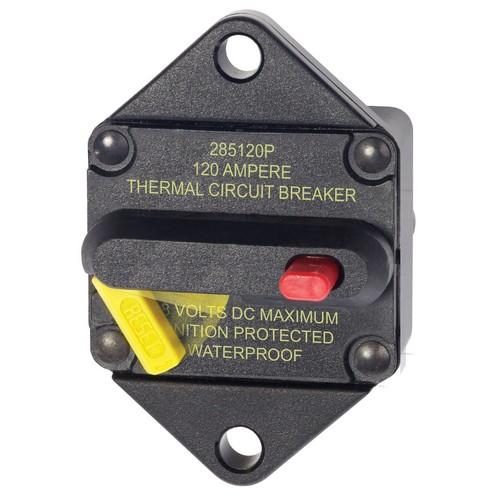

Blue Sea Systems, 7088, 285-Series Circuit Breaker - Panel Mount 120A
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7088, 285-Series Circuit Breaker - Panel Mount 120A

  • Model: 7088
  • GTIN: 00632085070885
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$104.56 $80.43

Manufacturer Info

(image for) Blue Sea Systems
285-Series Circuit Breaker - Panel Mount 120A
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • Trip Free - cannot be held closed after trip
  • Dimensioned Drawing | Download
* Do not use as a switch where high inrush currents are expected.
Specifications
Amperage120A
Maximum Voltage48V DC
MountingPanel Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal StudM6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque50 in-lb (5.65 Nm)
Interrupt Capacity 3000A @ 48V
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Weight0.50lb (0.23 kg)
Optional Accessories
1477 360 Panel Mount
7098 285-Series Circuit Breaker Bezel Mount Adapter
7198 285-Series Circuit Breaker Panel Mount Adapter
