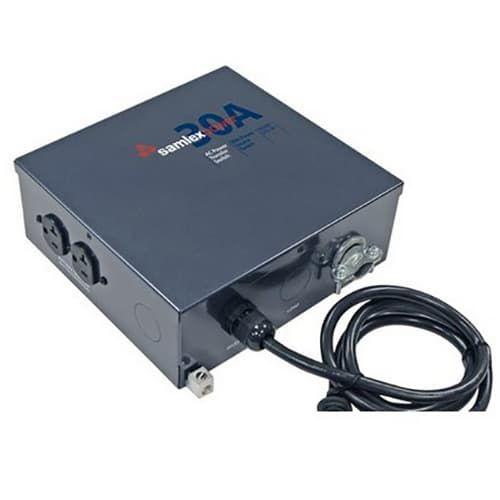

Whether youre using solar batteries or a generator to power your AC devices on the road chances are youre going to want to use shore power when its available. Connect a Samlex Transfer Switch to your generator or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.
Design Features - Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
- Has rated capacity of 30 Amps at 120 VAC and is suitablefor 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
- Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
- Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
- DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
- Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
- NEMA5-20R Duplex Receptacle for convenient connection of battery charger
- Product Specifications | Download
- Product Manual | Download
Applications- Solar power systems
- Emergency backup power
- Mobile offices
- Boats
- Lighting systems
- Recreational vehicles, camping
- Automotive
- Telecommunications
- Field work/construction sites
| Output | 120 VAC |
| Amps | 30 Amps |
| Weight | 4.4 (lbs) |
| Weight | 1.99 (kg) |
| Dimensions | 9 x 8.25 x 3.25 (in) |
| Dimensions | 22.9 x 21 x 8.3 (cm) |
| Warranty | 2 Years (Canada/US) |
