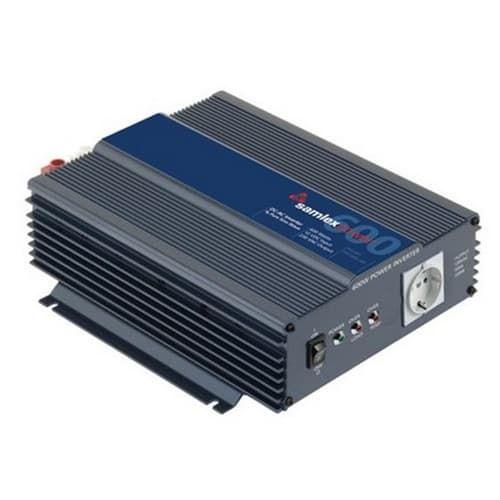

This high efficiency DC-AC inverter converts 24 Volts DC to 600 Watts of pure sine-wave AC power at 230 Volts 50 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection low battery alarm / shut down low idle power draw of less than 0.6 Amps. AC power is available from a Schuko receptacle.
Design Features- High efficiency
- Low battery voltage alarm
- Protections; input low voltage, input over voltage, over temperature, over load, short circuit
- Low idle power draw
- Optional remote control (sold separately): Model R-15

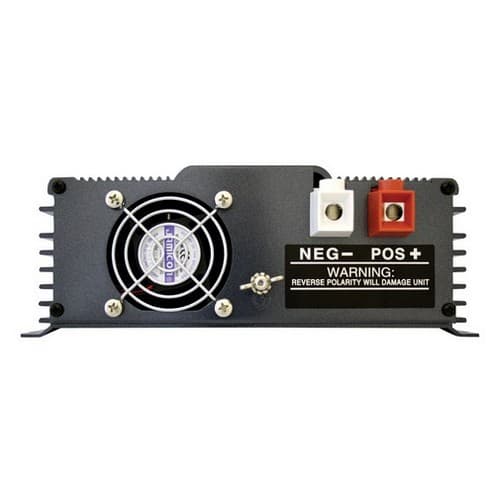

- Comes with pin-type battery cable lugs
- Product Specifications | Download
- Product Manual | Download
Applications - Service vehicles
- Mobile offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
| Input | 21.4 to 33 VDC |
| Output | 230 VAC |
| Watts | 600 |
| Amps | 40 |
| Surge | 1000 Watts |
| Weight | 5.4 (lb) |
| Weight | 2.5 (kg) |
| Dimensions | 11.1 x 9.5 x 3.2 (in) |
| Dimensions | 28.1 x 24.1 x 8.2 (cm) |
| Safety | Conforms to EN 60950-1 |
