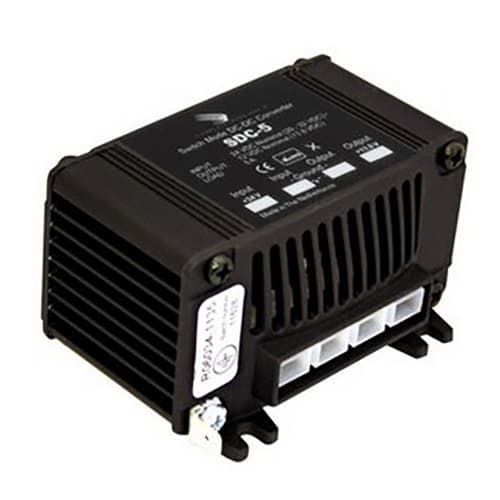

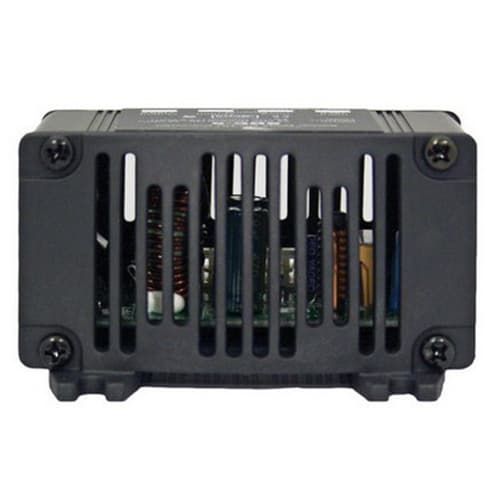

Samlex SDC-5 Switching DC-DC Converter


Security Seals
  • Model: SDC-5
  • GTIN: 00622988060342
  • Manufactured by: Samlex America
  • Condition: New
  • Estimated Delivery: May 28th - Jun 3rd
  • In Stock
  • Price: $50.00  $40.00
    Save: 20% off
    This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 5 Amps. The SDC-5 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit reverse polarity and over-voltage protection.

    Design Features
    • Advanced switchmode design
    • Mount in almost any location
    • Compact and light weight
    • Reverse polarity protection
    • High efficiency
    • Cycle by cycle current limiting circuit
    • Overvoltage protection
    • Short circuit protection
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Earth moving equipment
    • Heavy trucks
    • Buses
    • Marine vehicles
    • CB radios
    • 12 Volt lighting systems
    • AM/FM sound systems
    Input20-32 VDC
    Output13.8 VDC
    Amps5 Amps
    Weight0.4 (lbs)
    Weight0.18 (kg)
    Dimensions3.5 x 2.75 x 1.75 (in)
    Dimensions8.9 x 7 x 4.4 (cm)
    Warranty2 Years (Canada/US)
