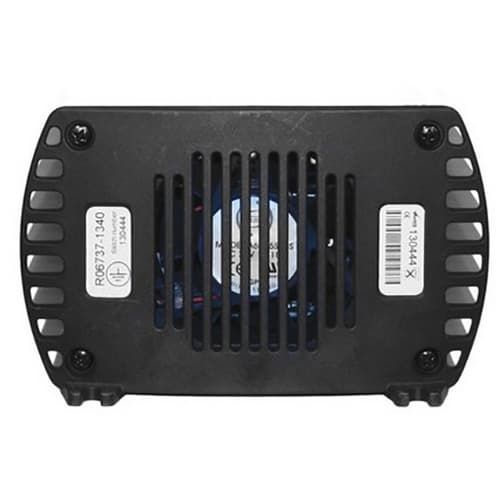

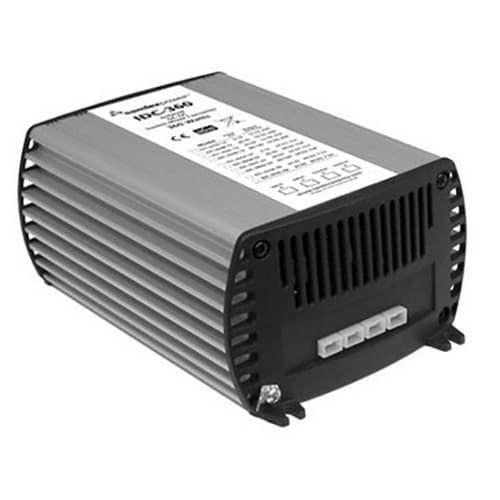

The images shown are for illustration purposes only and may not be an exact representation of the product

Samlex America, IDC-360D-12, Switching DC-DC Converter

  • Model: IDC-360D-12
  • GTIN: 00622988067334
  • Manufactured by: Samlex America
  • Condition: New
  • Estimated Delivery: Dec 6th - Dec 12th
  • In Stock
Price:

$472.29 $363.30

Manufacturer Info

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360D-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 60-120 Volts and rated output current of 30 Amps (at 120 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-360D-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Design Features
  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • 2 Year Warranty
  • CE Approved
  • Product Specifications | Download
  • Product Manual | Download
Applications
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
Input60~120 VDC
Output12 VDC
Amps30 Amps
Weight3.2 (lbs)
Weight1.45 (kg)
Dimensions6.5 x 6.4 x 2.5 (in)
Dimensions16.5 x 16.3 x 6.4 (cm)
SafetyCE
Warranty2 Years (Canada/US)
