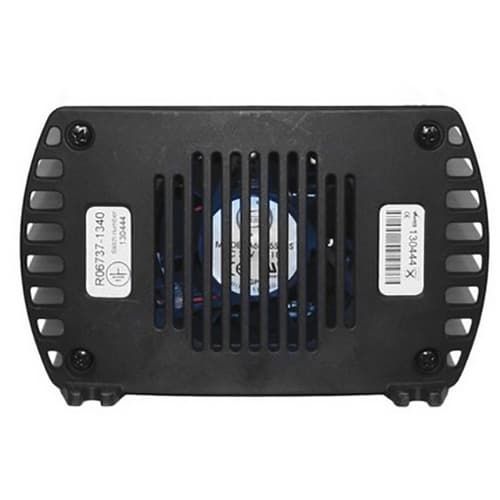

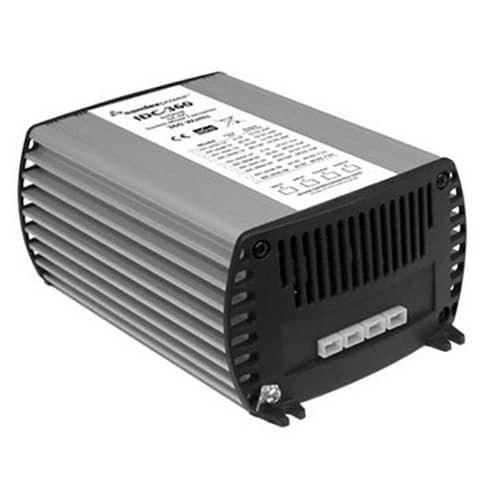

Samlex IDC-360C-12 Switching DC-DC Converter


Security Seals
  • Model: IDC-360C-12
  • GTIN: 00622988067327
  • Manufactured by: Samlex America
  • Condition: New
  • Estimated Delivery: May 28th - Jun 3rd
  • In Stock
  • Price: $336.63  $269.30
    Save: 20% off
    IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 30 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-360C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

    Design Features
    • Fully Isolated
    • Short Circuit Protected
    • Current Limited
    • 2 Year Warranty
    • CE Approved
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Earth moving equipment
    • Heavy trucks
    • Buses
    • Marine vehicles
    • CB radios
    • 12 Volt lighting systems
    • AM/FM sound systems
    Input30~60 VDC
    Output12 VDC
    Amps30 Amps
    Weight3.2 (lbs)
    Weight1.45 (kg)
    Dimensions6.5 x 6.4 x 2.5 (in)
    Dimensions16.5 x 16.3 x 6.4 (cm)
    SafetyCE
    Warranty2 Years (Canada/US)
