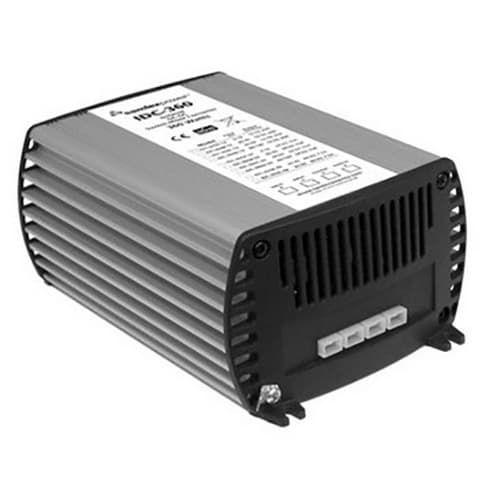

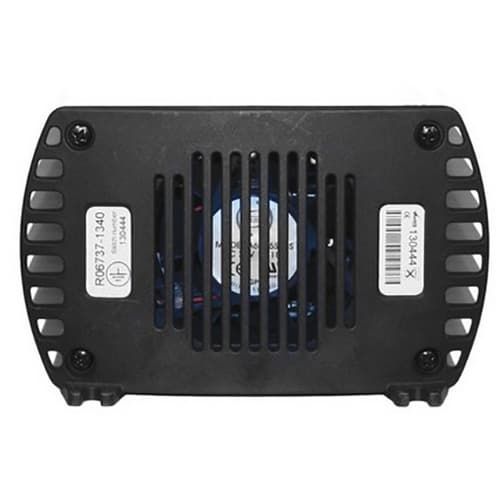

The images shown are for illustration purposes only and may not be an exact representation of the product
IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 30 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-360A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Design Features- Fully Isolated
- Short Circuit Protected
- Current Limited
- 2 Year Warranty
- CE Approved
- Product Specifications | Download
- Product Manual | Download
Applications- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
| Input | 9.2~18 VDC |
| Output | 12 VDC |
| Amps | 30 Amps |
| Weight | 3.2 (lbs) |
| Weight | 1.45 (kg) |
| Dimensions | 6.5 x 6.4 x 2.5 (in) |
| Dimensions | 16.5 x 16.3 x 6.4 (cm) |
| Safety | CE |
| Warranty | 2 Years (Canada/US) |
