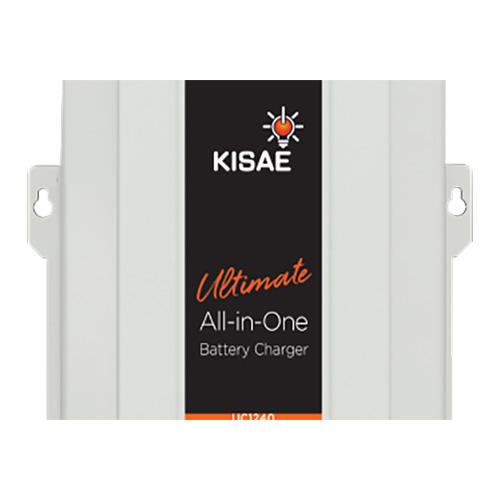

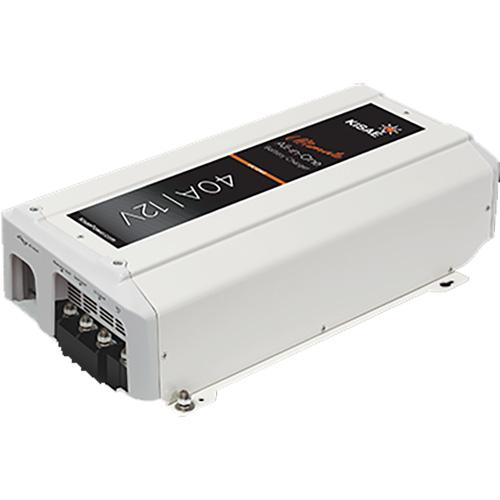

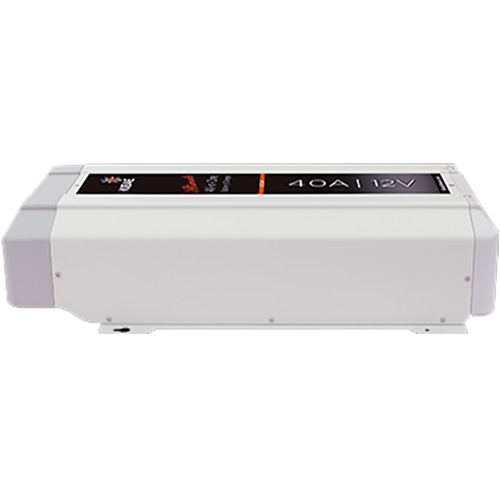

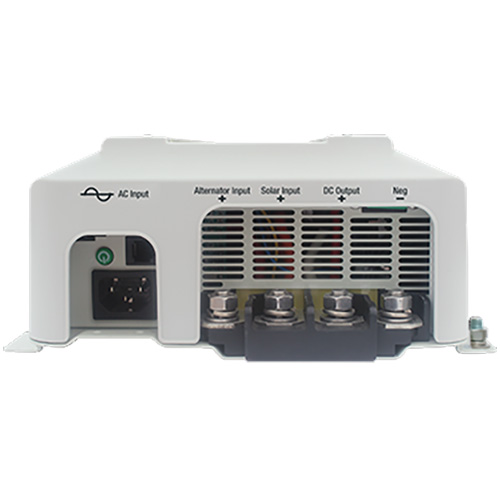

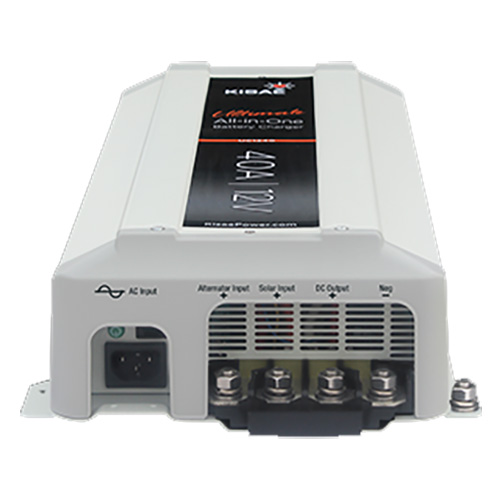

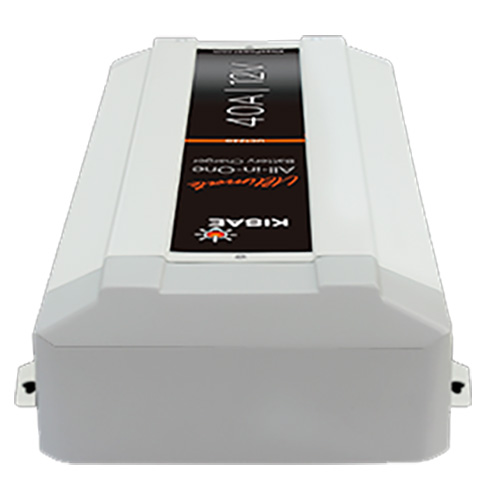

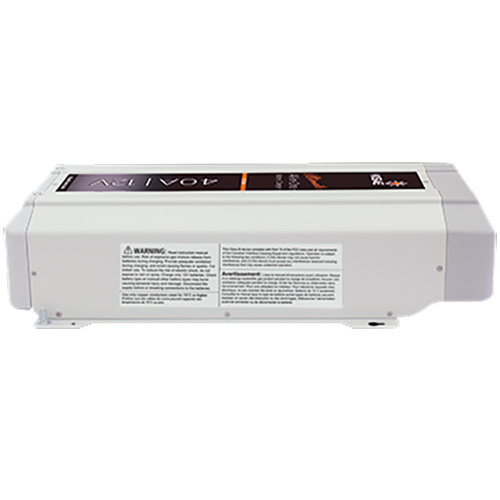

The images shown are for illustration purposes only and may not be an exact representation of the product

Kisae Technology, UC1240, Ultimate Charger 12V40A, AC-DC In, DC Out

  • Model: UC1240
  • Manufactured by: Kisae Technology
  • Condition: New
  • Estimated Delivery: Nov 5th - Nov 11th
  • In Stock
Price:

$837.20 $644.00

Manufacturer Info

UC1240
An all-in-one battery charger that accepts a variety of input sources, including: AC, DC, and PV solar. UC1240 - The Ultimate Battery Charger

KISAE's UC1240 is the ultimate all-in-one battery charger. Able to draw power from a variety of inputs sources to charge your house battery, these smart multi-stage chargers use advanced algorithms to rapidly and safely replenish large capacity Gel, AGM, Lithium and Flooded batteries to peak performance from your choice of input sources.

Features Include
  • Versatility of charging from multiple different input sources.
  • Multi-stage charging to improve battery life.
  • Optimized charging from PV Solar panels.
  • Intelligent Regulated Power Output.
  • Universal Input for global application.
Features And Benefits
  • Multi-stage battery charger that ensures batteries are charged to battery manufacturer’s recommendations.
  • Variable battery type settings including Gel, AGM, Program, Fixed Power Supply, Flooded, and Lithium.
  • Intelligent Regulated Output automatically regulates charger output to match battery requirements.
  • Universal Input for International use.
  • Fully programmable LCD digital display panel included.
  • Simple to install.
  • Compact size for easy storage.
Dimensions (L x W x H)
  • UC 1240: 17.9" x 9.4" x 4.1" (455 x 238 x 104mm)
Weight
  • UC 1240: 7.6 lbs. / 3.45 Kg
BATTERY CHARGER UC 1240
DC CONTROLLER OUTPUT
OUTPUT CURRENT (Maximum) 80A Total (40A max from AC input and 40A max from Solar or Alternator input)
DC OUTPUT VOLTAGE RANGE:
CHARGE 13.5 – 15.5V
FLOAT 13.0 – 13.8V
EQUALIZE (FLOODED BATTERY ONLY) 15.5V
CHARGING CONTROL 5 Stages (Test/Bulk/Absorption/Float/Recharge)
DC OUTPUT BANK One
SELECTABLE BATTERY TYPE Gel, AGM, Flooded (w/ Eq.), Lithium, Program, Fixed Power Supply
PARASITIC CURRENT < 2 mA
EFFICIENCY > 90%
DC INPUT (Battery/Alternator)
DC INPUT RANGE 10.5 – 32Vdc
AC INPUT NOMINAL OPERATION 13.2V for 12V input charging system
26.4V for 24V input charging system
26.4V for 24V input charging system
ENGINE START CONTROL: ON DC input from Battery/Alternator
ENGINE START CONTROL: OFF DC input from PV input (if applicable)
INPUT CURRENT 50A max
DC INPUT (PV)
MAX. PV OPEN CIRCUIT VOLTAGE 50 Vdc
DC INPUT NOMINAL OPERATION 17.5Vdc for 12V PV panels connected in parallel
35Vdc for 12V PV panels connected in series
35Vdc for 12V PV panels connected in series
MPPT TRACKING EFFICIENCY > 98%
AC INPUT (Utility/AC Generator)
AC INPUT VOLTAGE (Nominal) 100, 120, 220, 230, 240VAC
AC INPUT OPERATIONG RANGE 90 – 265VAC
AC INPUT FREQUENCY RANGE 47 – 63Hz
DC OUTPUT PROTECTION AND FEATURES
REVERSE BATTERY Yes (shutdown), Auto Reset
DC OUTPUT SHORT CIRCUIT Yes (shutdown), Auto Reset
OVER CHARGE Yes (shutdown), Auto Reset
OVER TEMPERATURE Yes (de-rated and shutdown)
COOLING Forced Air Ventilation
TEMPERATURE SETTING High, Normal, Low (no battery temp. sensor connected)
BATTERY TEMPERATURE SENSOR PORT RJ12 (optional Battery Temperature Sensor use)
DIGITAL DISPLAY PORT RJ12 (Digital Display Use)
DISPLAY PANEL
DIGITAL DISPLAY LED display with back lighting
(Voltage, Current, Status and Error Code)
LED INDICATORS Flashing green LED: Charging in progress
Solid green LED: Fully Charged
Solid red LED: Fault
ENCLOSURE
DC INPUT CONNECTION Hardwire
DC OUTPUT CONNECTION Hardwire
SIZE
NET WEIGHT 7.6 lbs / 3.45 Kg
DIMENSION (LxWxH) 17.9″ x 9.4″ x 4.1″ (455mm x 238mm x 104mm
REGULATORY COMPLIANCE
MARKINGS cETLus / CE, e-Mark
CONFORMANCE UL & CSA Standards / CE LVD
EMI/EMC FCC Part 15 Class B / CE EMC Tested to E9-09
ACCESSORIES (OPTIONAL)
BATTERY TEMPERATURE SENSOR BTS 10K (for battery charging voltage adjustment)
