QD Cable (portrait, 1.7 m)
Supporting faster, simpler, and more reliable installations, the QD Cable is a continuous length 12 AWG cable with pre-installed connectors for IQ Commercial Microinverters. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed.
The QD Cable works with IQ8 Commercial Microinverters and provides self-phase balancing and neutral sensing for phase loss protection.
This SKU of QD Cable is used for portrait PV modules, and comes with 1.7 m (5.6 ft) connector spacing.
Supporting faster, simpler, and more reliable installations, the QD Cable is a continuous length 12 AWG cable with pre-installed connectors for IQ Commercial Microinverters. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed.
The QD Cable works with IQ8 Commercial Microinverters and provides self-phase balancing and neutral sensing for phase loss protection.
This SKU of QD Cable is used for portrait PV modules, and comes with 1.7 m (5.6 ft) connector spacing.
- Neutral sensing for phase loss protection
- Locking-type connectors
- Rated for wet outdoor environments, sunlight resistance, and oil resistance
- Self-phase balancing
- Lightweight and simple for fast installation
- Modularly expandable
- Reduction in balance-of-system costs and installation time
- Phase ID marked on QD Cable connectors for easy identification (C1: L1-L2, C2: L2-L3, and C3: L3-L1 sequentially)
- Separate center-feeding connectors for each AC branch circuit for maintaining < 1% voltage rise
- QD Cable and Accessories data sheet | Download
- QD Cable: 4 conductors, 12 AWG
- Outer diameter: 11.5 mm
- Voltage rating: 600 V (connector rating up to 277 VAC)
- Certification: UL 3003 (raw cable), UL 9703 (cable assemblies), and DG cable
- Max. AC conductor resistance (20C): 5.43 ?/km 12 AWG
- Flame test rating: FT4
- Compliance: RoHS, OIL RES I, CE, UV resistant, and combined UL for the United States
- Conductor type: THHN/THWN-2 dry/we
- Connector spacing: 1.7 m (5.6 ft)
- IQ8 Commercial Microinverters
- 6 QD Cable drops (portrait) with connectors
Other Products in This Category

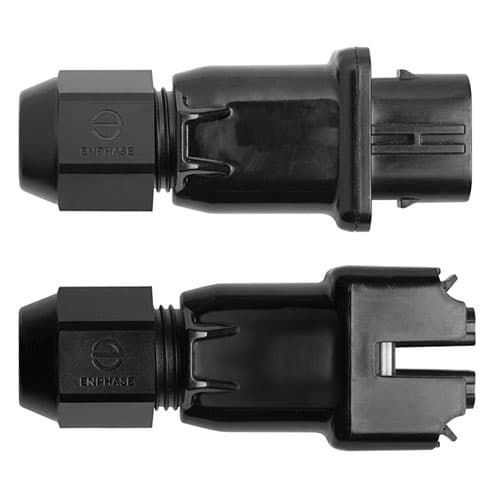

Enphase, QD-CONN-10F, Female field-wireable AC connector for Raw QD Cable; pack of 10 connectors
$204.02 $156.94
$204.02 $156.94
Enphase, QD-CONN-10M, Male field-wireable AC connector for Raw QD Cable; pack of 10 connectors
$204.02 $156.94
$204.02 $156.94
Enphase, SC200G111C240US01, IQ System Controller 3, 200A, Grid Side Installation, Includes Generator Support Connection, 240V
$4,239.50 $3,261.15
$4,239.50 $3,261.15

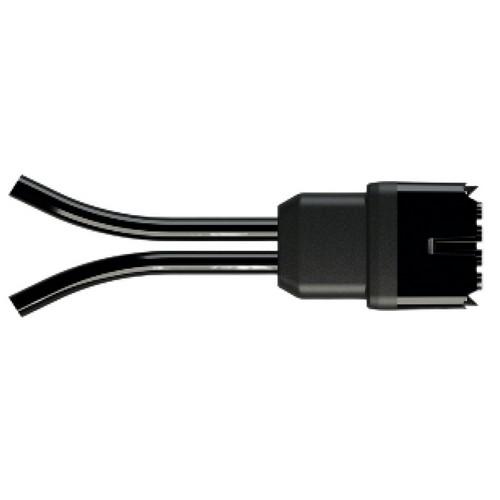

Enphase, QD-LINKFW-10, Centre tap adaptor cable for QD Cabling. Female IQ8D AC to Phoenix Female, legth between connectors 300mm. Pack of 10.
