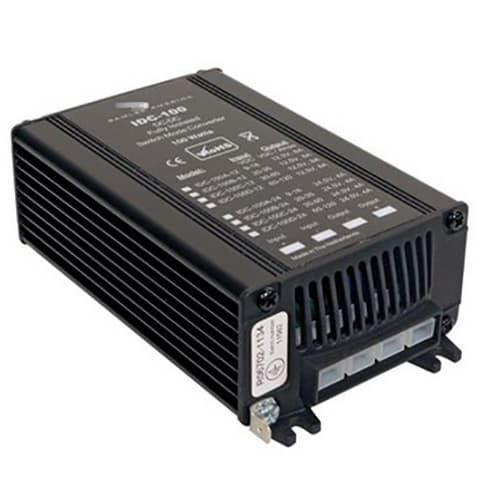

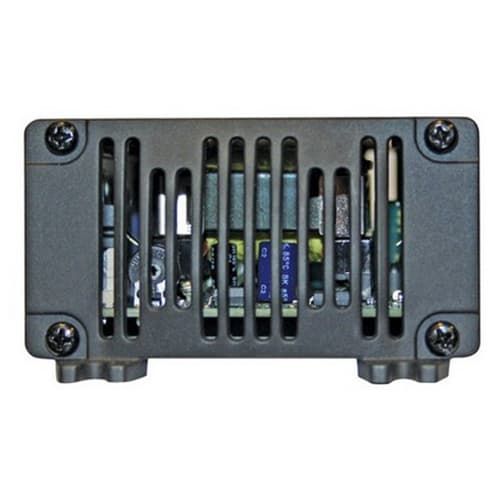

The images shown are for illustration purposes only and may not be an exact representation of the product

Samlex America, IDC-200B-12, Switching DC-DC Converter

  • Model: IDC-200B-12
  • GTIN: 00622988067211
  • Manufactured by: Samlex America
  • Condition: New
  • Estimated Delivery: Dec 4th - Dec 10th
  • In Stock
Price:

$245.18 $188.60

Manufacturer Info

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 16 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-200B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Design Features
  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • 2 Year Warranty
  • CE Approved
  • Product Specifications | Download
  • Product Manual | Download
Applications
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
Input20~35 VDC
Output12 VDC
Amps16 Amps
Weight1.5 (lbs)
Weight0.68 (kg)
Dimensions6.9 x 3.5 x 1.9 (in)
Dimensions17.5 x 8.9 x 4.8 (cm)
SafetyCE
Warranty2 Years (Canada/US)
