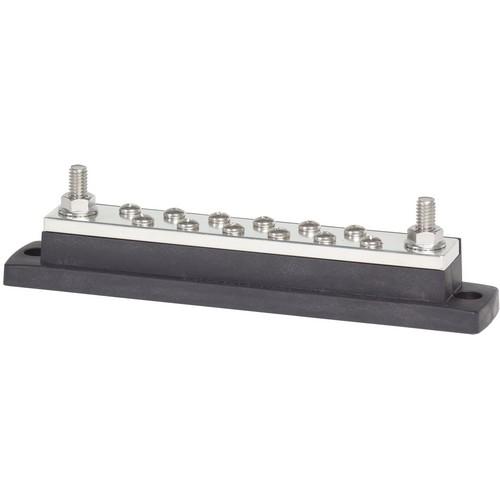

Blue Sea Systems, 2105, MaxiBus 250A BusBar - Two 5/16"-18 Studs and Twelve #10-24 Screws
- Model: 2105
- GTIN: 00632085021054
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Oct 6th - Oct 12th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
MaxiBus 250A BusBar - Two 5/16"-18 Studs and Twelve #10-24 ScrewsBusbars are used to consolidate multiple wires or feed multiple circuits - Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single screw or stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
- Dimensioned Drawing | Download
- CE Certificate for BusBars | Download
- Declaration of Conformity for BusBars | Download
Specifications |
Maximum Voltage | 300V AC 48V DC |
Number of Screw Terminals | 12 |
Number of Terminal Studs | 2 |
Terminal Type | #10-24 Screw 5/16"-18 Stud |
Continuous Rating | 250A |
Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
Recommended Screw Torque | 23 in-lb (2.6 Nm) |
Recommended Stud Torque | 132 in-lb (14.91 Nm) |
Weight | 0.80lb (0.36 kg) |
Weight | 0.80lb (0.36 kg) |
Optional Accessories |
2718 | MaxiBus Insulating Cover for PN 2105 and 2126 |
