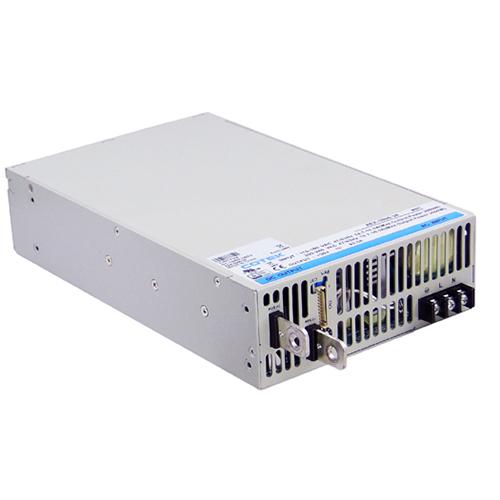

Cotek, AEK-3000-48 (LV) Oring, 3000W Programmable Single Output

Model: AEK-3000-48 (LV) Oring
Manufactured by: Cotek
Condition: New
Estimated Delivery: Apr 28th - May 4th
In Stock
Out of Stock

Price:

$1,120.60 $862.00

Manufacturer Info

Other products

AEK-3000-LV ORingFET Features

Universal AC input / Full range
Programmable output voltage & Current (0%~105%)
High power density 16.3W / inch3
Built-in Oring Diode
Remote setting multiple PSU via RS232, RS485 & I2C
Global control via RS232
Forced current sharing at parallel operation
Constant current limit
Remote ON / OFF, remote sense function
Protection: OVP, OLP, OTP, Fan failure
Accessory: CT Series
Product Datasheet | Download

Main Features	Programmable output voltage and output current (0%~105%) Parallel connection with current sharing Compact design, high power density, high efficiency Constant current limit suitable for battery charging application
Rated Power	AEK-3000-12/15?2400W; AEK-3000-24/30/36/48/60?3000W
DC Output Voltage	12V; 15V; 24V; 30V; 36V; 48V; 60V
DC Output Quantity	Single
Rated Current	200A; 160A; 125A; 100A; 83.5A; 62.5A; 50A
Ripple & Noise (Max.)	150mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p
Input Voltage Range	90~264VAC, 127~370VDC
Inrush Current (Typ.)	33A / 115VAC, 65A / 230VAC
Function	Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage Trim; Output current Trim
Parallel Connection	Yes
Protection	Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure
Cooling	Load and temperature control fan
Efficiency	86%; 89%; 90%; 91%; 91%; 92%; 92%
Operating Temperature	-20~60C
Storage Temp. & Humidity	-40~85C, 10~95%RH
Safety	TUV / UL / CE / UKCA
Dimension (WxHxD)	170x64x280 mm
Weight (Net)	3.9kg
