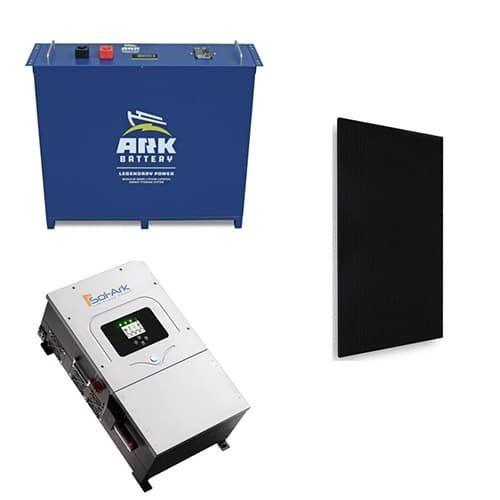

The images shown are for illustration purposes only and may not be an exact representation of the product

Inverter Supply, 374633-IS, The Ronald I, Hybrid On-Grid/Off Grid Complete Solar Kit

  • Model: 374633-IS
  • Manufactured by: Inverter Supply
  • Condition: New
  • Estimated Delivery: Mar 29th - Apr 4th
  • In Stock
Price:

$22,636.74 $17,412.88

Manufacturer Info

This Kit Includes
Panel configuration 11 panels for each MPPT input
  • Model: Sol-Ark-8K-48-ST - (QTY 1)
  • Model: ARK512200 - (QTY 1)
  • Model: DNA-108-BF10-400W - (QTY 22)
Sol-Ark 8K-2P-N Hybrid Solar Battery SYstem Inside the 8K box
  • Manual-Read here
  • WiFi Plug with screws
  • Want to buy a PowerView Dongle?Click here to order
  • Battery Resistors-2
  • Limiter Sensors (sm)-2
  • Toroid
  • Allen Key
  • Mounting Bracket
  • Battery Temp Sensor

Designed & Engineered in Silicon Valley
400W | 405W | 410W


Our DNA Split Cell Series uses advanced selective emitter PERC technology with thin film layers to improve heat tolerance, increase photon capture, minimize resistive loss, and use 5% more of the available active area for optimal power performance. Our panels exceed IEC standards and come with an industry leading, 30-year warranty.

Advanced Technology
  • Patented DNA technology boosts power performance & module efficiency
  • Product Specifications | Download
Durable Design
  • Robust product design is resilient in extreme weather. Up to 5400 Pa snow load and 5400 Pa wind load
Maximum Panel Density
  • Advanced split cell technology with 10 ultra-thin busbars allows for less resistance and more photon capture
A Safe Investment
  • Industry leading 30 year warranty

Every ARK Battery is equipped with a special balancing system to ensure that all cells are charged and discharged equally. This serves the same purpose as 'equalizing' does for a lead-acid battery. While LiFePO4 batteries may not be equalized externally, it is critical that all cells within maintain the same voltage. An 'imbalanced' battery will result in nuisance BMS shut-offs, lower capacity and a drastically reduced cycle life.

Most batteries in today's market come with a small balancing system known as passive balancing. In passive balancing, a set of resistors begin to dissipate (burn off) power from any cell that has an individual voltage higher than 3.6V. This dissipation typically occurs at 50-100 ma (5% to 10% of 1 amp). We have found this balancing method to be ineffective to meet the stringent requirements of cell balancing. In short, it is too slow as well as inefficient.

IMPACTIV balancing, used in all ARK Batteries channels extra power from high-volt cells to low-volt cells, and deploys additional dissipative consumption should a cell reach critically high voltage. Passive Balancing
  • Dissipates a small amount of power (usually 1/10 Amp or less) when a cell reaches a critically high level.
Impactiv Balancing
  • Transfers current (power) from highest cells to lowest cells to keep all cells equal.
IMPACTIV balancing kicks in any time that a single cell's voltage varies from the rest of the pack. This can be a higher voltage (top-balancing during charge) or a low cell (bottom balancing, during discharge). A special extra boost is applied if a cell's voltage reaches 3.55V. Balancing is performed at up to 20 times the speed of passive balancing while maintaining a much higher efficiency and adding up to 30% to your battery life.

Efficiency
Efficiency is the name of the game. Coming from an off-grid way of life, we breathe efficiency. We have designed our batteries to be unbelievably efficient from every possible aspect.

Storage Efficiency
Most batteries have a round trip (charging power vs. available discharge power) of only 80-90%. Power is lost through charging inefficiencies, self-discharge, heat losses and other factors. ARK Batteries are nearly 100% efficient. What you put in, you can draw out!

Self-Consumption Efficiency
All electronic components in our battery are completely shut down when the breaker is off to reserve the power for your energy needs.

Cost Efficiency
ARK Battery has the lowest cost per lifetime KWH on the market!

Space Efficiency
Our space-efficiency rule is simple; "Up instead of out." All of our larger batteries have layered cells to maintain a small battery footprint in your utility room. If your project requires multiple batteries, our heavy-duty steel cased Gold Series batteries can be double and even triple stacked, while our state of the art modular series can be stacked up to 8 high.

Cell Type Efficiency
We use prismatic cells in all our batteries to improve overall efficiency. Our prismatic cell batteries have fewer connections, lower resistance and use less space than cylindrical cell counterparts.

Installation Efficiency
ARK Batteries are designed by installers for installers. We have implemented features such as casters, Anderson connectors and bluetooth monitoring for an easy and time-effective installation process.

Balancing Efficiency
We use a balancing system called impact balancing that channels power back and forth between cells as needed. Traditional balancing systems dissipate (waste) power from cells with the highest voltage.
ARK 256200 ARK 512100 ARK 512200
Nominal Battery Voltage 48 48 24
Actual Voltage 51.2 51.2 25.6
Amp Hours 100 200 200
KWH 5.1 10.2 5.1
LCD Display Yes Yes Yes
Max Continuous Charge/Discharge Amps 100 140 140
Breaker Size (Amps) 125 160 160
Minimum Temperature 32F 32F 32F
Maximum Temperature 115F 115F 115F
Maximum Charge Volts 57.6 57.6 28.8
Recommended Charge Volts 57.2 57.2 28.6
Float Volts 54.4 54.4 27.2
BMS Protected Yes Yes Yes
Cell Chemistry LiFe PO4 LiFe PO4 LiFe PO4
Cell Format Prismatic Prismatic Prismatic
Certifications UL 1642 & UL 1973 UN 38.3 UL 1642 UN 38.2 UL 1642 UN 38.3
Warranty 5 year full 5 year full 5 year full
