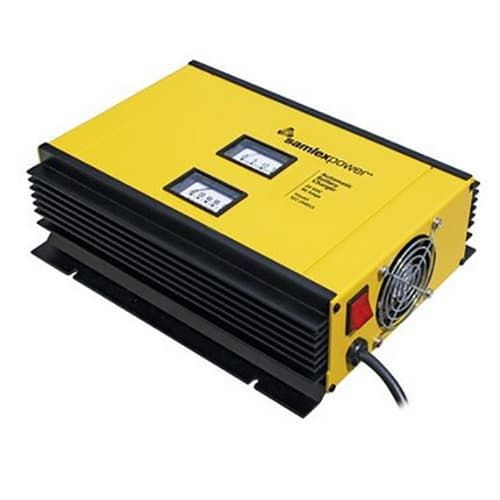

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries (Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V 60 Hz or 230 V 50 Hz AC source. By means of a DIP switch setting conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.

Design Features

• High efficiency
• Commercial Grade
• Lightweight
• Quiet operation
• Industry Proven Design 1000s of units in operation
• 2 or 3 stage charging (user selectable)
• 120 or 230 VAC 50/60 Hz (user selectable)
• Voltage meter display Ammeter and LED power status
• For all types of Lead Acid batteries
• Charge with a battery load or stand alone
• Use as a power supply or DC UPS
• UPC: Universal Protection Circuit short circuit overload reverse battery polarity
• Charge 3 banks of batteries at once no isolator necessary
• Product Specifications | Download
• Product Manual | Download
• Product Manual - ES | Download

Applications

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

Input	120 VAC 60 Hz or 230 VAC 50 Hz
Output	12 VDC
Amps	15 Amps
Weight	4.4 (lbs)
Weight	1.96 (kg)
Dimensions	8.5 x 8.5 x 3 (in)
Dimensions	21.6 x 21.6 x 7.6 (cm)
Safety	Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
Warranty	2 Years (Canada/US)
