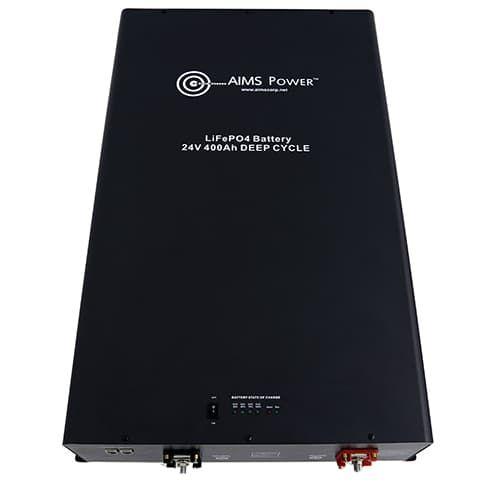

AIMS Power, LFP24V400A, Lithium Battery 24V 400AMP LIfePO4 Industrial Grade

  • Model: LFP24V400A
  • GTIN: 00840271004594
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 23rd - May 29th
  • In Stock

$5,642.00 $4,340.00

Manufacturer Info

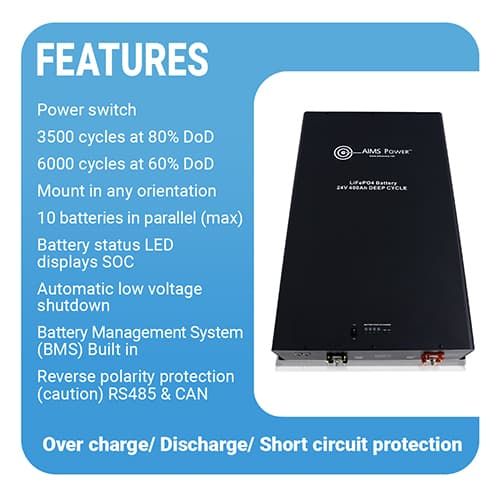

  • 24Volt
  • Lithium Iron Phosphate - LiFePO4
  • 400 amps
  • Battery status LED State of Charge display
  • On/off switch
  • 3/8 terminals
  • Terminal covers included
  • Cables included used for parallel connecting batteries - 41" length

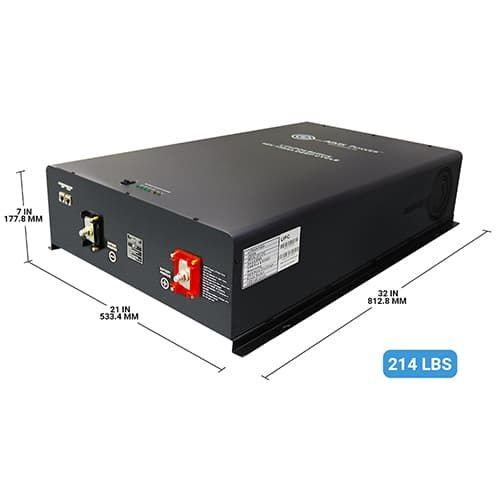

  • Dimensions: 32"L x 21"W x 7"H
  • Shipped dimensions: 38"L x 29"W x 21 1/2"H
  • Unit weight: 214 lb
  • Shipped weight: 242 lb
  • 10 year manufacturer defect warranty prorated
Model LFP24V400A LFP48V200A
Nominal Voltage 25.6Vdc 51.2Vdc
Battery Voltage 24V 48V
Battery Rated Capacity 300Ah 150Ah
Battery Rated Energy 10.24 kWh 10.24 kWh
Battery Cell Type Prismatic Pouch
Battery Cell 3.2V 75AH 3.2V 75AH
Battery Cell Configuration 8S4P 16S2P
Rated Charge Voltage 28.0Vdc 56.0Vdc
Max Charge Voltage 28.4Vdc +/-.5V 56.8Vdc +/-.5V
Overcharge Protection 28.9Vdc +/-.5V 57.3Vdc +/-.5V
Rated Charge Current 150A 100A
Peak Charge Current 180A 120A
Over Charge Protection Release Restart
Reverse Polarity Protection Yes
Battery Terminal Size M10 / 7/16” / 12mm
Self Discharge Rate 5% per month
Charge Temp Range 0~45C / 32~113F
Output Voltage Range 20~28Vdc 40~56Vdc
Rated Discharge Current 300A 200A
Peak Discharge Current 360A 240A
Over Discharge Protection BMS Disconnect Charging, cut power to loads and restart
Discharge Temp Range Humidity Storage Operating Humidity -20~65C / -4~149F 45-75 % 5-90%
Communication RS485 / CAN for PC monitor
Case Material Metal
