Manufacturer Info
Specifications
- 24Volt
- Lithium Iron Phosphate - LiFePO4
- 400 amps

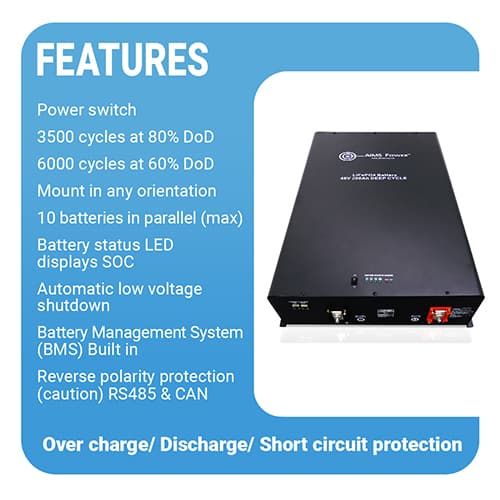

- Battery status LED State of Charge display
- On/off switch
- 3/8 terminals
- Terminal covers included
- Cables included used for parallel connecting batteries - 41" length

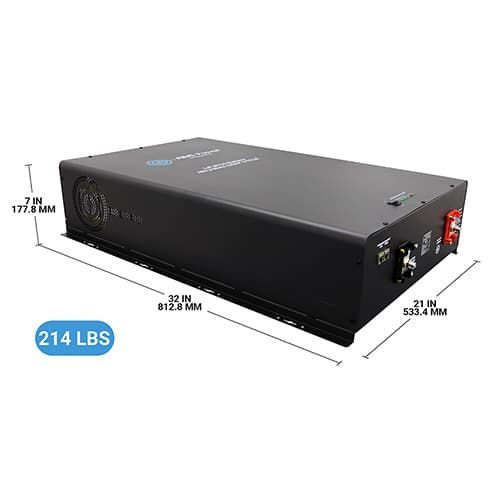

- Dimensions: 32"L x 21"W x 7"H
- Shipped dimensions: 38"L x 29"W x 21 1/2"H
- Unit weight: 214 lb
- Shipped weight: 242 lb
- 10 year manufacturer defect warranty prorated
Model | LFP24V400A | LFP48V200A |
Nominal Voltage | 25.6Vdc | 51.2Vdc |
Battery Voltage | 24V | 48V |
Battery Rated Capacity | 300Ah | 150Ah |
Battery Rated Energy | 10.24 kWh | 10.24 kWh |
Battery Cell Type | Prismatic Pouch | |
Battery Cell | 3.2V 75AH | 3.2V 75AH |
Battery Cell Configuration | 8S4P | 16S2P |
Rated Charge Voltage | 28.0Vdc | 56.0Vdc |
Max Charge Voltage | 28.4Vdc +/-.5V | 56.8Vdc +/-.5V |
Overcharge Protection | 28.9Vdc +/-.5V | 57.3Vdc +/-.5V |
Rated Charge Current | 150A | 100A |
Peak Charge Current | 180A | 120A |
Over Charge Protection Release | Restart | |
Reverse Polarity Protection | Yes | |
Battery Terminal Size | M10 / 7/16” / 12mm | |
Self Discharge Rate | 5% per month | |
Charge Temp Range | 0~45C / 32~113F | |
Output Voltage Range | 20~28Vdc | 40~56Vdc |
Rated Discharge Current | 300A | 200A |
Peak Discharge Current | 360A | 240A |
Over Discharge Protection BMS Disconnect | Charging, cut power to loads and restart | |
Discharge Temp Range Humidity Storage Operating Humidity | -20~65C / -4~149F 45-75 % 5-90% | |
Communication | RS485 / CAN for PC monitor | |
Case Material | Metal |
