The images shown are for illustration purposes only and may not be an exact representation of the product

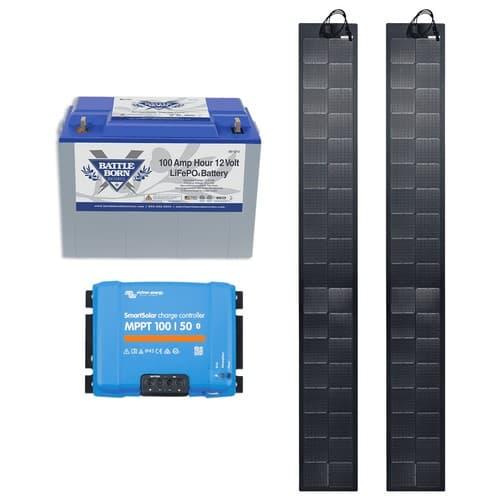

This Battle Born Solar bundle offers you 340W of solar power accompanied with a Victron Smart Solar 100/50 Charge Controller and a 100Ah 12V battery.
This bundle is expandable for up to 800W of solar with a single solar charge controller. For more power, an additional solar charge controller will need to be purchased.
Solar Panel - 2 x 18 cell grid configuration
- Dimensions: 2983 x 372 mm (LxW)
- Weight: 4.15kg
- Rated Power: 170W
- Open Circuit Voltage: 23.9V
Solar Charge Controller (100/50) - Dimensions: 130 x 186 x 70 mm
- Weight: 1.3kg
- Nominal PV Power at 24V: 1400W
- Maximum Open Circuit Voltage: 100V
- Charge Current: 50A
100Ah 12V Battery- Dimensions: 12.75 X 6.875 X 9 in. (L x W x H)
- Weight: 31lbs.
- Charging voltage: 14.2 - 14.6 V
- Float voltage: 13.6 V or lower
