The images shown are for illustration purposes only and may not be an exact representation of the product

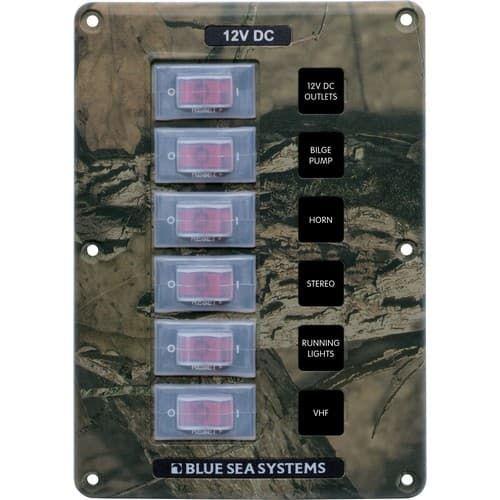

Blue Sea Systems, 4325, Water-Resistant Circuit Breaker Switch Panel - Camo, 6 Positions

  • Model: 4325
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$95.98 $73.83

Manufacturer Info

Designed for exposed mounting applications
  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces

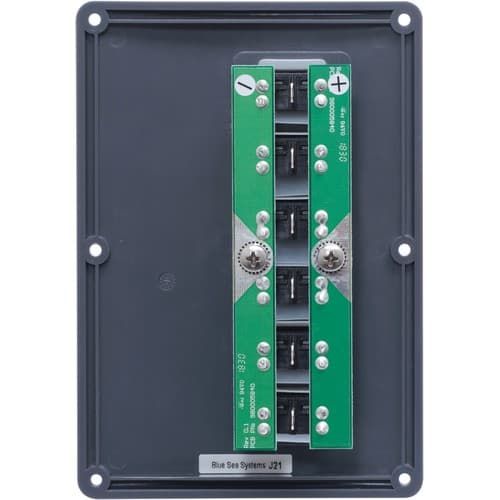

  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
  • Wiring Diagram | Download
Specifications
ColorCamo
Positions6
Nominal Voltage12V DC
Maximum Amperage 45A
Terminal Type1/4" Male quick connect
HardwareStainless Steel #6 x 5/8" mounting screws
Ring Terminal SizeM5 (#10)
Height6.625in (168.28 mm)
Width4.625in (117.48 mm)
Depth1.75in (44.45 mm)
