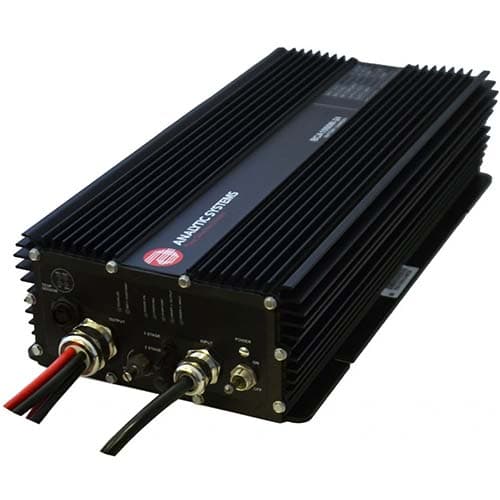

Analytic Systems, PWS1050W-48, 18/22A, 48V Out, 85 - 264 VAC PFC In, Power Supply, IP66
Manufacturer Info
Features
Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 264 VAC at 50 or 60 Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input and output filtering reduces EMI to extremely low levels to prevent radio interference. Reliability features of this unit include an LED status indicator panel, input circuit breaker and thermal shutdown, under voltage shutdown and short circuit shutdown with automatic recovery. Devices connected to the power supply are protected by an output over voltage protection circuit and output current limiting.
The new power supply is identical to the previous power supply (PWS1005W) in form, fit, and function and is a direct drop in replacement.
- IP66 rated, can be used in wet location
- Power Factor Corrected AC Input
- Ultra-Quiet EMI to power sensitive electronics without interference
- Audible and visual indicators for operation and errors
- Adjustable output voltage
- Extremely rugged for demanding environments
- Digital Volt/Ammeter option
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 264 VAC at 50 or 60 Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input and output filtering reduces EMI to extremely low levels to prevent radio interference. Reliability features of this unit include an LED status indicator panel, input circuit breaker and thermal shutdown, under voltage shutdown and short circuit shutdown with automatic recovery. Devices connected to the power supply are protected by an output over voltage protection circuit and output current limiting.
The new power supply is identical to the previous power supply (PWS1005W) in form, fit, and function and is a direct drop in replacement.
Specialization | Water Resistant / Waterproof |
---|---|
Function | Power Supply |
Conversion | AC to DC |
Power Level | 1000 |
Input Volts | 85 - 264 VAC, 110 VAC, 110/220 VAC, 220 VAC |
Power Factor Corrected (PFC) | Yes |
Output Volts | 48 VDC |
Output Amps Continuous | 20 |
Output Amps Peak | 25 |
Input/Output Isolation | Yes |
Technology | Analog |
Temperature Compensation | Yes |
Equalize | Yes |
Product Series on website | PWS1050 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant |
