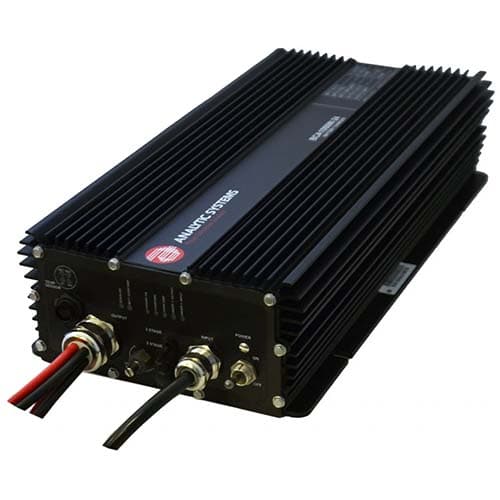

The images shown are for illustration purposes only and may not be an exact representation of the product
80A Cont/96A Peak, 12V Out, 85 - 264 VAC PFC In, Power Supply, IP66Features - IP66 rated, can be used in wet location
- Power Factor Corrected AC Input
- Ultra-Quiet EMI to power sensitive electronics without interference
- Audible and visual indicators for operation and errors
- Adjustable output voltage
- Extremely rugged for demanding environments
- Digital Volt/Ammeter option
- Three year parts and labour warranty
- Product Manual | Download
The PWS1050W Series power supply provides up to 1000 watts of precision power to a DC load at 12, 24, 32, 36, 48 or 72 (Rail) VDC from any conventional AC input voltage (85-264 VAC).
The extruded aluminum chassis and billet machined front and rear covers are designed to be dust proof and water resistant to the IP66 standard. An optional upgrade to full IP67 certified (1 meter submersion for 30 minutes) is available.
The recently updated design incorporates a brand new Power Factor Corrected (PFC) Input Stage. The PFC input stage increases the efficiency over the previous autoswitching technology and eliminates the dead spot between 110 and 220 VAC input allowing the power supply to run continuously from 85 - 264 VAC In at 45 - 65 Hz. The new power supply is identical to the previous power supply (PWS1005) in form, fit, and function and is a direct drop in replacement. Extra features include an LED status indicator panel, input circuit breaker, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.PWS1050W-12 quantity
| Specialization | Water Resistant / Waterproof |
| Function | Power Supply |
| Conversion | AC to DC |
| Power Level | 1000 |
| Input Volts | 85 - 264 VAC |
| Power Factor Corrected (PFC) | Yes |
| Output Volts | 12 VDC |
| Output Amps Continuous | 80 |
| Output Amps Peak | 96 |
| Input/Output Isolation | Yes |
| Technology | Analog |
| Temperature Compensation | Yes |
| Equalize | Yes |
| Product Series on website | PWS1050 |
| Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant |
