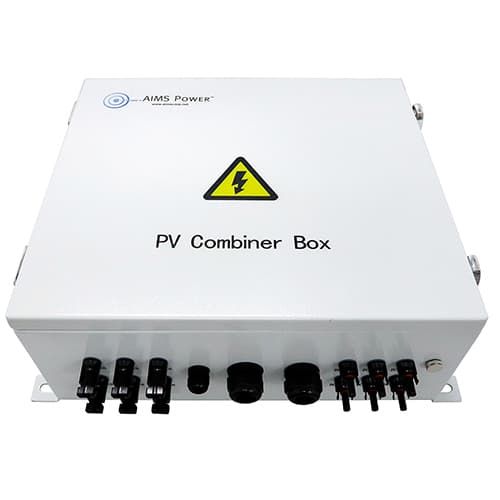

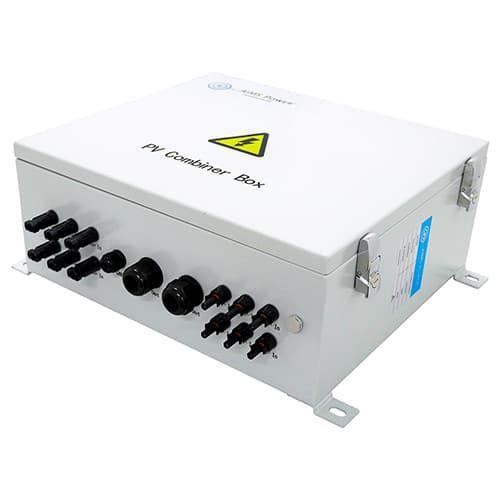

AIMS Power, COM6IN-120AO, 6 String Solar Array Combiner Box 120A 200 VDC 6 Inputs 20KW Prewired

  • Model: COM6IN-120AO
  • GTIN: 00840271007267
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 23rd - May 29th
  • In Stock
Price:

$755.30 $581.00

Manufacturer Info

Solar Array Combiner Box 120A 200Vdc 6 String - 20KW Prewired

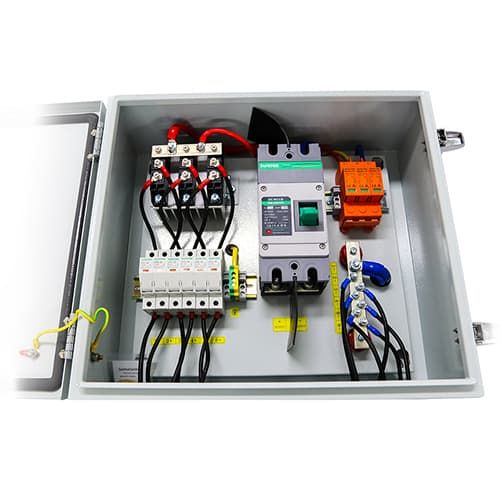

The AIMS Power Solar Array Combiner Box provides a convenient solution for large PV solar array installations. The Combiner Box is exactly that... a box that serves as a central location for multiple input to a single output load. At 10KW/20KW output and 200Vdc input, this pre-wired box, with MC4 input and output connectors and a NEMA waterproof case is a must have for off-grid and grid tied systems. Ideal for larger solar arrays/high current systems, easing the hassle of dealing with several wires and combines all wires into one place for simple installation and maintenance. The combiner box eliminates the need for extra equipment such as output breakers, branch connectors and disconnect switches. The convenient MC4 connectors eliminate the need to hardwire, allowing for a quick plug and use solution.

Features
  • Pre-wired 1000V DC max input
  • 125A resettable output breaker
  • 6-25A replaceable fuses
  • Diode protected
  • Lightning protected

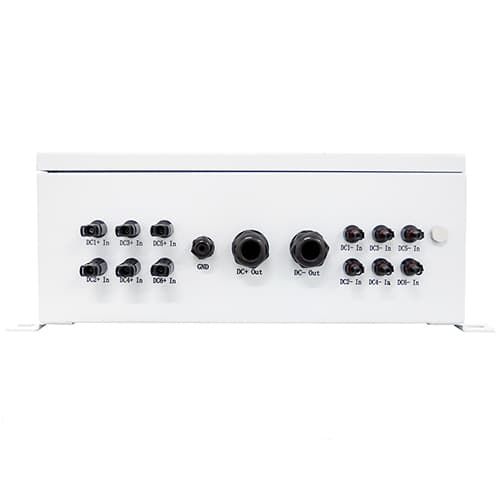

  • MC4 input and out connections
  • DC input 6 sets
  • 120A output
  • Flexible mounting options; mount on a support bracket, plinth or racking system
  • Connect 3-6 PV strings and 2 DC outputs per polarity
  • Waterproof PG9
  • DC output and ground protection
  • Optimal cooling
  • NEMA & IP65 rated case with tamper proof lock
  • Touch safe fuse holder
  • 10 Year warranty
  • Product Manual | Download
Specifications
  • 6 DC inputs
  • 200VDC input
  • Max input current - 25A
  • Max output current - 120A
  • Output power - 20KW
  • DC fuse - 200Vdc
  • Output breaker - 125A
  • DC switch - 500Vdc/40DA
  • NEMA 3R IP65
  • Operating temp: -13F to 104F w/o derating
  • Altitude: 0 to 6560 ft w/o Derating

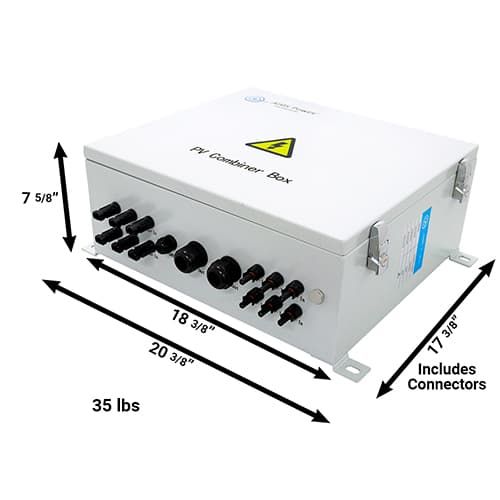

  • Dimensions: 20 3/8?W (includes brackets, 18 3/8?W without brackets, 17 3/8? L (includes connectors), 7 5/8? H
  • Weight: Unit 35 lb, Boxed 39 lb
