Manufacturer Info

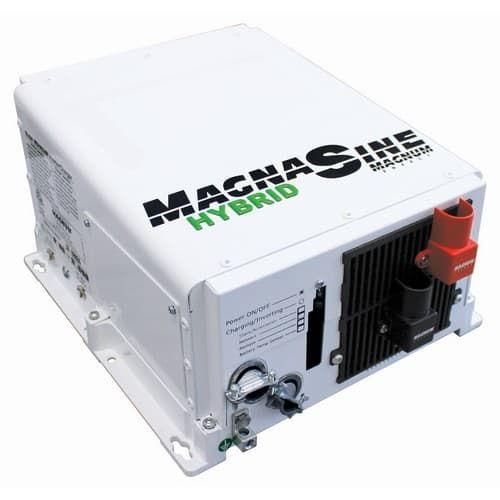

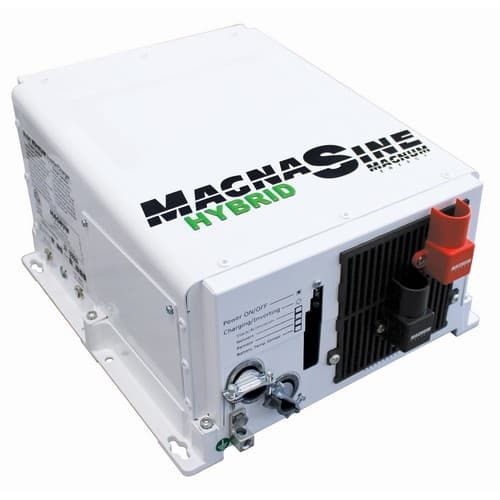

4000W 24VDC Pure Sine Hybrid Inverter Charger MSH-M Series
MSH4024M (MSH4024M-L)
The MSH-M Series Inverter/Charger from Magnum Energy - a pure sine wave inverter designed with true hybrid technology allowing it to run larger loads from smaller generators.
Hybrid Technology: Most inverters only use one source of energy to power loads, either from incoming AC power - shore or AC generator - or from the batteries. The MSH-M Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
Battery Profile Presets: Using the ME-RC or ME-ARC Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC, Gel, Flooded, AGM1, and AGM2.
MSH4024D-L Option: The MSH4024D-L comes with two 60 amp AC inputs - a grid input at 60A and a generator input at 60A Remote Panel
MSH4024M (MSH4024M-L)
The MSH-M Series Inverter/Charger from Magnum Energy - a pure sine wave inverter designed with true hybrid technology allowing it to run larger loads from smaller generators.
Hybrid Technology: Most inverters only use one source of energy to power loads, either from incoming AC power - shore or AC generator - or from the batteries. The MSH-M Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
Battery Profile Presets: Using the ME-RC or ME-ARC Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC, Gel, Flooded, AGM1, and AGM2.
MSH4024D-L Option: The MSH4024D-L comes with two 60 amp AC inputs - a grid input at 60A and a generator input at 60A Remote Panel
- ME-RC, ME-ARC
- Bulk, Absorb, Float, Equalize (requires remote), and Battery SaverTM
- 28
- 110
| Output Power | 4,000W |
|---|---|
| Peak Watts | 5,800W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 33.3 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 24 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 93.7% |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 18 to 34 |
| Pure Sine Wave |
| Easy AC and DC Wiring |
| 3 Year Warranty |
