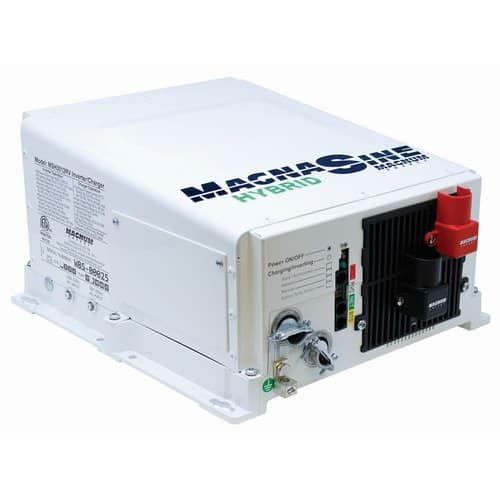

Magnum Energy, MSH3012RV-L, 3000 Watt, 12V Inverter/125 Amp PFC Charger, Mobile version Hybrid with Load Support, Dual Input/Output, 50Amp transfer, RVC
Manufacturer Info
3000W 12VDC Pure Hybrid Inverter Charger MSH-RV Series
MSH3012RV (MSH3012RV-L)
Designed specifically for use in RVs, the MSH-RV Series Inverter/Charger is a pure sine wave inverter designed with true hybrid technology allowing it to run larger loads from smaller generators.
Hybrid Technology: Most inverters only use one source of energy to power loads, either from incoming AC power - shore or AC generator - or from the batteries. The MSH-RV Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
Built-in RV-C Connector: The built in RV-C connector and protocol allows the MSH-RV Series to multiplex directly with the RV's network bus/backbone. Program your inverter/charger settings using the RV's system monitoring display.
Battery Profile Presets: Using ME-RC or ME-ARC Remote Controls, or built-in RV-C compliant interfaces via the ME-RVC Bridge, easily choose and set most standard battery profile settings, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-RVC, Gel, Flooded, AGM1, and AGM2. Remote Panel
MSH3012RV (MSH3012RV-L)
Designed specifically for use in RVs, the MSH-RV Series Inverter/Charger is a pure sine wave inverter designed with true hybrid technology allowing it to run larger loads from smaller generators.
Hybrid Technology: Most inverters only use one source of energy to power loads, either from incoming AC power - shore or AC generator - or from the batteries. The MSH-RV Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
Built-in RV-C Connector: The built in RV-C connector and protocol allows the MSH-RV Series to multiplex directly with the RV's network bus/backbone. Program your inverter/charger settings using the RV's system monitoring display.
Battery Profile Presets: Using ME-RC or ME-ARC Remote Controls, or built-in RV-C compliant interfaces via the ME-RVC Bridge, easily choose and set most standard battery profile settings, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-RVC, Gel, Flooded, AGM1, and AGM2. Remote Panel
- ME-RC, ME-ARC
- Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
- 18
- 125
| Output Power | 3,000W |
|---|---|
| Peak Watts | 3,500W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 25.0 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 12 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 88.0% |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 9.0-17.0 |
| Load support |
| Power factor corrected charging |
| Pure sine wave |
| Pass through capabilities |
| Lightweight, small footprint |
| Multiple ports |
| Accessible design |
| Convenient switches |
| Buy with ease |
