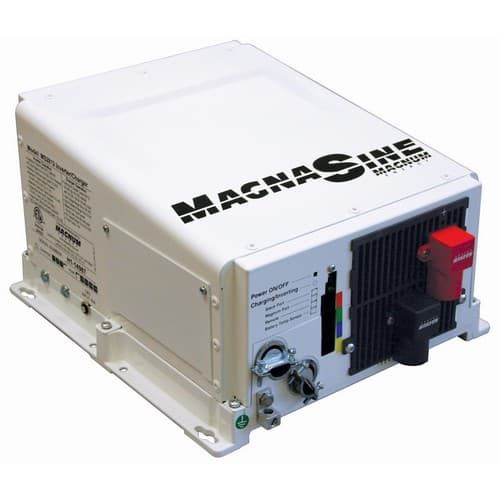

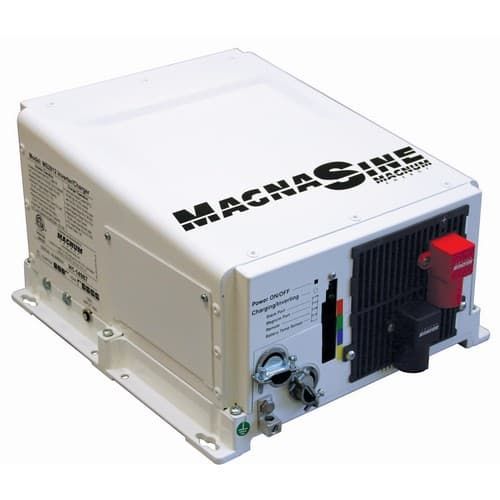

Magnum Energy, MS2812-L-U, 2800 Watt, 12V Inverter/125 Amp PFC Charger
Manufacturer Info
2800W 12VDC Pure Sine Inverter Charger MS Series
MS2812 (MS2812-GL, MS2812-L-F, MS2812-L-U)
The MS Series Inverter/Charger - a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.
Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
Expanded Transfer Relay: 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only. Remote Panel
MS2812 (MS2812-GL, MS2812-L-F, MS2812-L-U)
The MS Series Inverter/Charger - a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.
Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
Expanded Transfer Relay: 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only. Remote Panel
- ME-ARC, ME-RC
- 30 ACC max. each input, 60ACC total
- Power Factor Corrected with 3-Step
- 18
- 125
Output Power | 2,800W |
---|---|
Peak Watts | 3,900W |
Warranty | Three years parts and labor |
Output Voltage | 120 VAC |
Output Current | 23.3 amps |
Output Waveform | Pure Sine |
Output Frequency | 60 Hz |
Input Voltage | 12 |
Operating Temp | -20° C to +60° C (-4° F to 140° F) |
Efficiency | 90% |
Weight | 55 lb (24.9 kg) |
Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Battery Voltage Range | 9-16.8 |
Pure Sine Wave |
12, 24 and 48V configurations |
Versatile Mounting |
Lightweight |
Multiple Comm Ports |
Expanded Transfer Relay |
