The images shown are for illustration purposes only and may not be an exact representation of the product

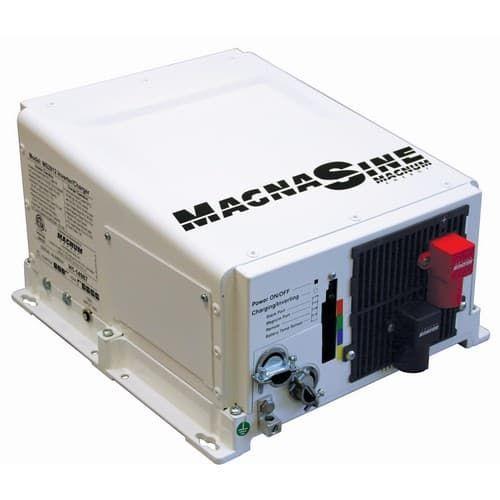

Magnum Energy, MS2812-GL, 2800 Watt, 12V Inverter/125 Amp PFC Charger, with GFCI includes MM-RC-1 Remote

  • Model: MS2812-GL
  • Manufactured by: Magnum Energy
  • Condition: New
  • Estimated Delivery: Oct 6th - Oct 12th
  • In Stock
Price:

$2,574.16 $1,980.12

Would you like to add these items to your order?
Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version  $323.52 $248.86

Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt)  $226.97 $174.59

Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable  $338.88 $260.68

Manufacturer Info

2800W 12VDC Pure Sine Inverter Charger MS Series
MS2812 (MS2812-GL, MS2812-L-F, MS2812-L-U)

The MS Series Inverter/Charger - a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.

Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.

Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.

Expanded Transfer Relay: 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only. Remote Panel
  • ME-ARC, ME-RC
Transfer Relay
  • 30 ACC max. each input, 60ACC total
Charger Type
  • Power Factor Corrected with 3-Step
Input Current
  • 18
Output Current
  • 125
Output Power2,800W
Peak Watts3,900W
WarrantyThree years parts and labor
Output Voltage120 VAC
Output Current23.3 amps
Output WaveformPure Sine
Output Frequency60 Hz
Input Voltage12
Operating Temp-20° C to +60° C (-4° F to 140° F)
Efficiency90%
Weight55 lb (24.9 kg)
Dimensions13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL CertifiedYes
PhaseSingle
TopologyLow Frequency
Input Battery Voltage Range9-16.8
Pure Sine Wave
12, 24 and 48V configurations
Versatile Mounting
Lightweight
Multiple Comm Ports
Expanded Transfer Relay
