Magnum Energy, MS2000-20BL-U, 2000 Watt, 12V Inverter/100 Amp PFC Charger/30Amp Single Input/2-20A AC Breakers

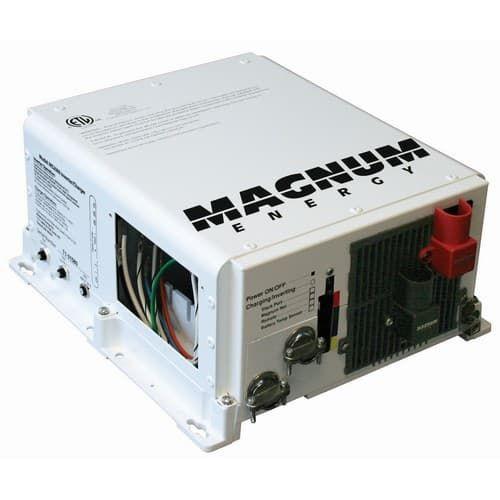

The images shown are for illustration purposes only and may not be an exact representation of the product

Magnum Energy, MS2000-20BL-U, 2000 Watt, 12V Inverter/100 Amp PFC Charger/30Amp Single Input/2-20A AC Breakers

  • Model: MS2000-20BL-U
  • Manufactured by: Magnum Energy
  • Condition: New

    • This product is currently on Backorder.
    Expected Ship Date: December 29, 2023

    Price: $2,116.39  $1,627.99
    Would you like to add these items to your order?
    Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version (Must be Connected to a Magnum Inverter  $323.52  $248.86
    Magnum Energy, ME-BMK, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt)  $215.07  $165.44
    Magnum Energy, ME-ARC50, Advanced Remote Digital LCD Display Remote Panel with 50' Cable  $571.39  $439.53
    2000W 12VDC Pure Sine Inverter Charger MS Series
    MS2000 (MS2000-GL, MS2000-L-U, MS2000-L-F, MS2000-15BL-U, MS2000-20BL-U, MS2000-20BL-F)

    The MS Series Inverter/Charger - a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.

    Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.

    Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.

    Expanded Transfer Relay: 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only. Remote Panel
    • ME-ARC, ME-RC
    Charger Type
    • Bulk, Absorb, Float, Equalize (requires remote), and Battery SaverTM
    Input Current
    • 15 Amps AC
    Output Current
    • 100 ADC
    Output Power2,000W
    Peak Watts3,300W
    WarrantyThree years parts and labor
    Output Voltage120 VAC
    Output Current16.7 amps
    Output WaveformPure Sine
    Output Frequency60 Hz
    Input Voltage12
    Operating Temp-20° C to +60° C (-4° F to 140° F)
    Efficiency90.6%
    Weight42 lb (19.1 kg)
    Dimensions13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
    UL CertifiedYes
    PhaseSingle
    TopologyLow Frequency
    Input Battery Voltage Range9-16.8
    Pure Sine Wave
    12, 24 and 48V configurations
    Versatile Mounting
    Lightweight
    Multiple Comm Ports
    Expanded Transfer Relay
