Manufacturer Info

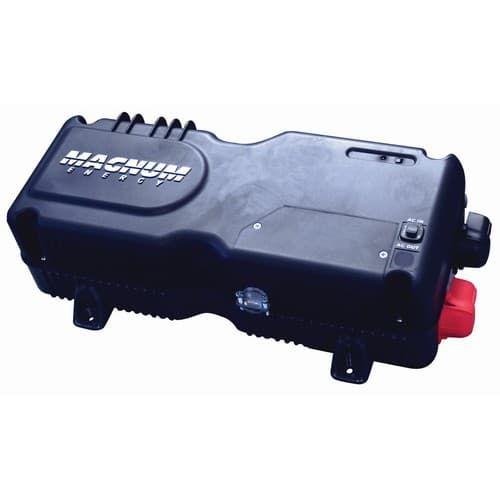

1000W 12VDC Pure Sine Inverter Charger MMS Series
MMS1012 (MMS1012-GL, MMS1012-L-F, MMS1012-L-U)
The MMS Series Inverter/Charger is a pure sine wave inverter providing a cost-effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MMS Series provides a reliable base for your energy systems. The MMS1012-GL provides convenient access with a GFCI outlet and AC input via a 3-foot cord.
Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2. Remote Panel
MMS1012 (MMS1012-GL, MMS1012-L-F, MMS1012-L-U)
The MMS Series Inverter/Charger is a pure sine wave inverter providing a cost-effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MMS Series provides a reliable base for your energy systems. The MMS1012-GL provides convenient access with a GFCI outlet and AC input via a 3-foot cord.
Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2. Remote Panel
- ME-ARC, ME-RC, MM-RC
- Power Factor Corrected with 3-Step
- 7 Amp AC
- 50 Amp DC
Output Power | 1,000W |
---|---|
Peak Watts | 1,750W |
Warranty | 2 Years |
Output Voltage | 120 VAC |
Output Current | 8.3 amps |
Output Waveform | Pure Sine |
Output Frequency | 60 Hz |
Input Voltage | 12 |
Operating Temp | -20° C to +60° C (-4° F to 140° F) |
Efficiency | 87% |
Weight | 23 lb (10.4 kg) |
Dimensions | 16.6” x 8.4” x 4.7” (42 cm x 21 cm x 12 cm) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Battery Voltage Range | 9-17 |
Standard 20A transfer relay |
Low/High Battery Protection |
Versatile Mounting |
Fan Cooled |
Current Overload Protection |
Circuit breaker protection |
Battery Temperature Sensor |
