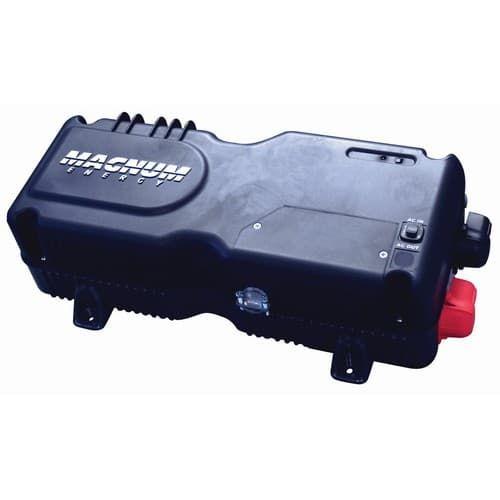

1000W 12VDC Pure Sine Inverter Charger MMS Series
MMS1012 (MMS1012-GL, MMS1012-L-F, MMS1012-L-U)

The MMS Series Inverter/Charger is a pure sine wave inverter providing a cost-effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MMS Series provides a reliable base for your energy systems. The MMS1012-GL provides convenient access with a GFCI outlet and AC input via a 3-foot cord.

Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.

• Download Owners Manual | Download
• Download Spec Sheet | Download
• 3D Images | Download

Remote Panel

• ME-ARC, ME-RC, MM-RC

Charger Type

• Power Factor Corrected with 3-Step

Input Current

• 7 Amp AC

Output Current

• 50 Amp DC

Output Power	1,000W
Peak Watts	1,750W
Warranty	2 Years
Output Voltage	120 VAC
Output Current	8.3 amps
Output Waveform	Pure Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	87%
Weight	23 lb (10.4 kg)
Dimensions	16.6” x 8.4” x 4.7” (42 cm x 21 cm x 12 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	9-17

Standard 20A transfer relay

Low/High Battery Protection

Versatile Mounting

Fan Cooled

Current Overload Protection

Circuit breaker protection

Battery Temperature Sensor
