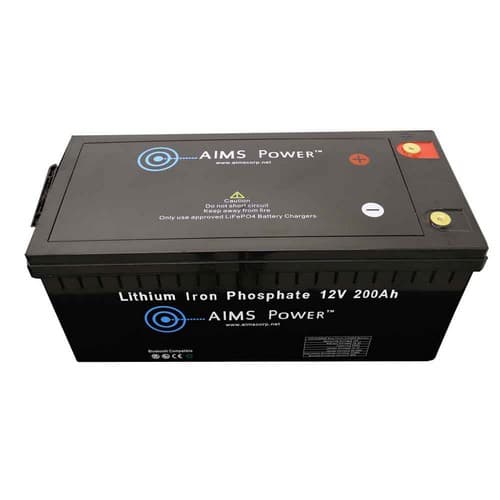

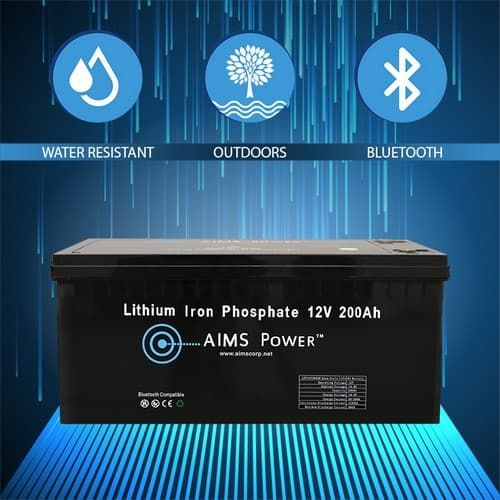

The Lithium 12V 200Ah LiFePO4 Battery with Bluetooth Monitoring from AIMS Power is a member of our new battery product line of LiFePO4 batteries. The LiFePO4 batteries maintain constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery. This advanced battery can greatly simplify or even eliminate the need for voltage regulation circuitry.

Compared to other battery technologies, this battery has a much longer cycle life capacity and is easier to maintain. It has better thermal and chemical stability, which improves battery safety.

It hasn't sacrificed performance at the expense of safety, however. This battery is packed with power. Mountable in any orientation, it small and is light and easy to handle, making it adaptable and versatile for a variety of installations. It will easily use the same space as your existing 12V battery.

With proper care, this battery can last a decade or more. It is backed by a 10-year warranty.

This innovative battery can replace lead acid, AGM or gel battery applications in RVs, golf carts and boats. It's also great for commercial vehicles, off-grid backup power and much more. This deep-cycle battery is not intended to replace starting batteries.

Features

• Extremely high number of charge/discharge cycles
• > 10 Year lifespan with proper maintenance

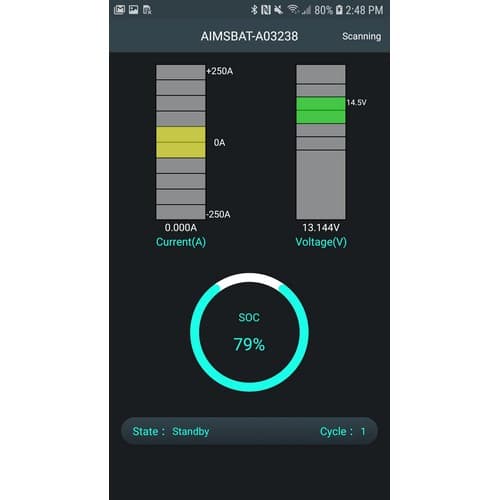

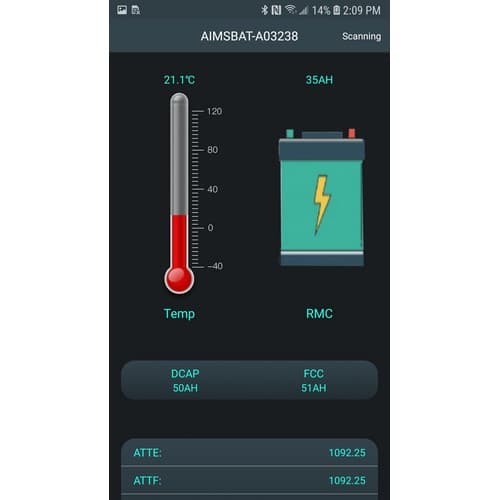

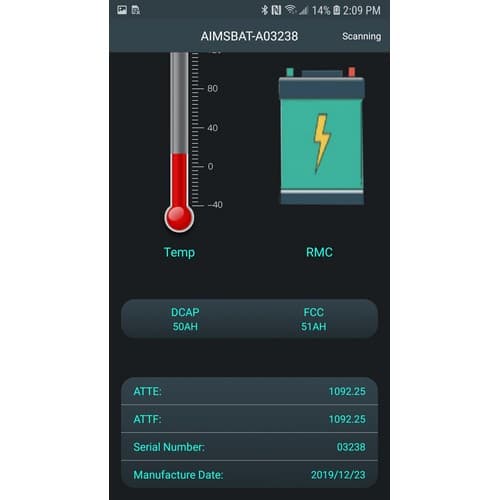

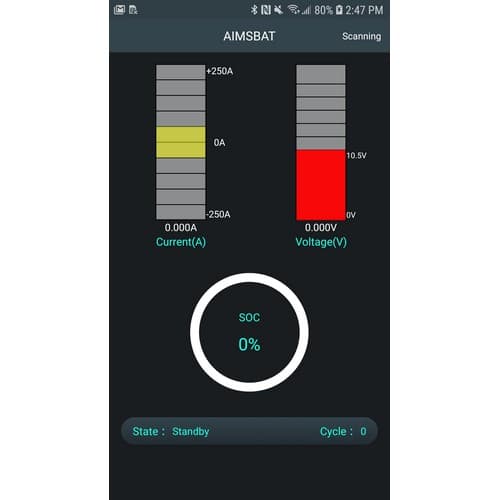

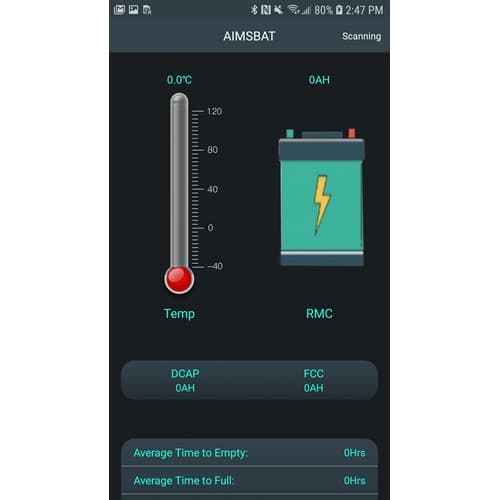

• Bluetooth monitoring
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely

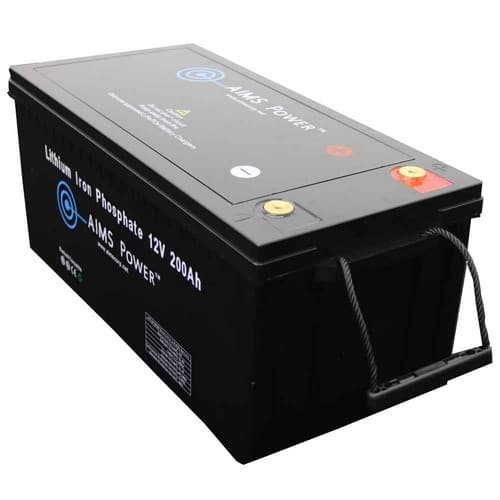

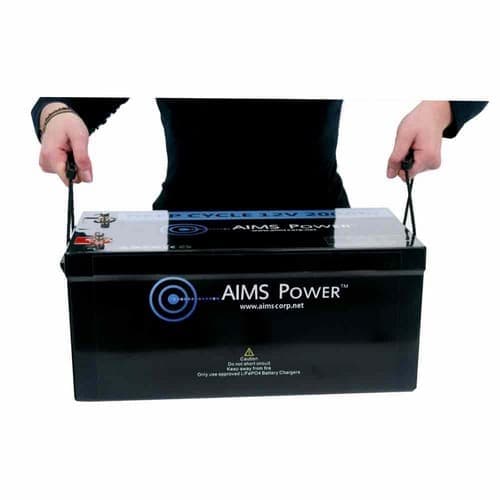

• Convenient carry handles
• Lightweight
• 50, 100 & 200 Ah models available
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated Battery Management System (BMS)
• AIMS Power Lithium Battery - 200 amp 12V | Download

Electrical Specifications	LFP12V200B
Nominal Voltage	12.8V
Nominal Capacity (at .5C, 77F)	200Ah
Minimum Capacity (at .5C, 77F)	190Ah

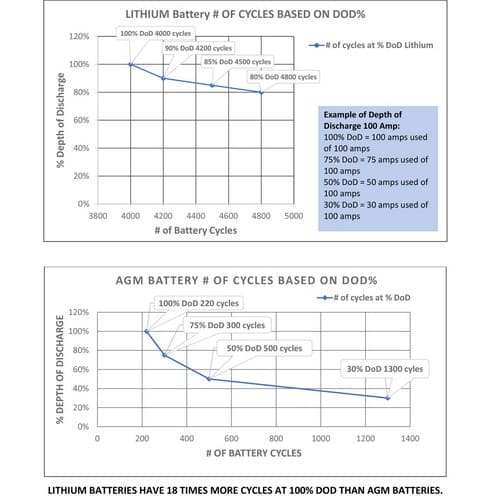

Expected Cycle Life	>4000 cycles w/1C charge and discharge rate, at 77F, 80% DOD
Operating Specifications
Charge Method	Smart charger, constant current, constant voltage
Charge Voltage Range (Max 14.6V)	14.4 -14.6V
Continuous Charge Current	200A Max
Charge Temperature	32 F to 113 F
Continuous Discharge Current	200A Max
Peak Instant Discharge Current (10 secs)	400A Max
Over Voltage Shutdown	15.2 +/-.5V
Discharge Cut-off Voltage	8V =/- .5V
Discharge Temperature	-4 F to 149 F includes low temp disconnect protection
Storage Temperature	-4 F to 113 F
Self Disharge (stored at 50% SOC)	< 3%/month
Watt hours	2560 watt hours
Physical Specifications

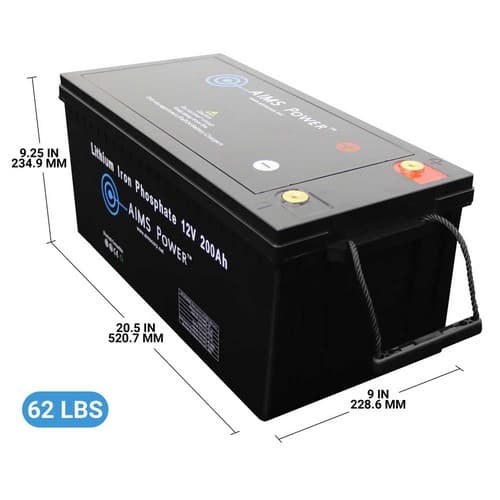

Battery Dimensions	20.5"L x 10"W x 9.25"H
Weight	62 lb
Shipping Weight62	64 lb
Group Size	4D
Battery post size	5/16" 8M 1.7" long
BMS Operation
Over Charge Protection	Over charge detection voltage: 3.8 +/- .05V
Over charge detection delay time: .96 - 1.4s
Over charge release voltage: 3.60 +/-.05V
Maximum charge voltage: 3.65 +/-.05V
Over Discharge Protection	Over discharge detection voltage: 2.0V +/- .05V
Over discharge detection delay time: .96 - 1.4s
Over discharge release voltage: 2.3V +/- .10V
Over Current Protection	Over current detection delay time: 9 +/- 2ms
Over current release condition: Cut load
Polarity Reverse Protection	Yes
Short Circuit Protection	Yes
UPC	840271005829
Warranty	10 Yr Manufacturer Defect. Prorated.
