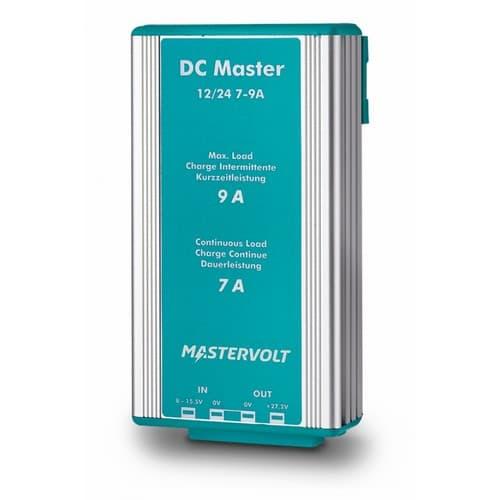

Mastervolt, 81400500, DC Master 12/24-7A

  • Model: 81400500
  • GTIN: 00816882020841
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary

$363.51 $279.62

Manufacturer Info

DC Master 12/24-7

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.
  • Recreational and semi-professional use.
  • Easy to install using included mounting bracket.
  • Excellent price/performance ratio.
  • Available in isolated and non-isolated version.
The non-isolated DC Master models have an electrical connection between the input and output.

  • Low costs.
  • Efficient: low heat generation.
  • Compact.
  • Suited to applications with negative earthing.
  • Product Specifications | Download
The isolated DC Master models provide galvanic isolation between input and output circuits..

  • Extra touch-proof.
  • Interference suppression for sensitive equipment.
  • Available with negative or positive grounding.
Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.
General specifications
Nominal output voltage27.2 V
Max. output power245 W
Nominal output power191 W
Max. output current (for 2 min. intervals)9 A
Continuous output current7 A
Nominal input voltage12 V
Input voltage range (max.)10-15.5 V DC (16 V)
Galvanic isolationno
Dimensions, hxwxd 167 x 87 x 50 mm 6.6 x 3.4 x 2.0 inch
Weight 0.64 kg 1.4 lb
ComplianceCE, E-mark
Technical specifications
DC consumption< 25 mA
Temperature range (ambient temp.) -25 C to 80 C, derating > 30 C -13 F to 176 F
Coolingnatural cooling
Protection degreeIP53
