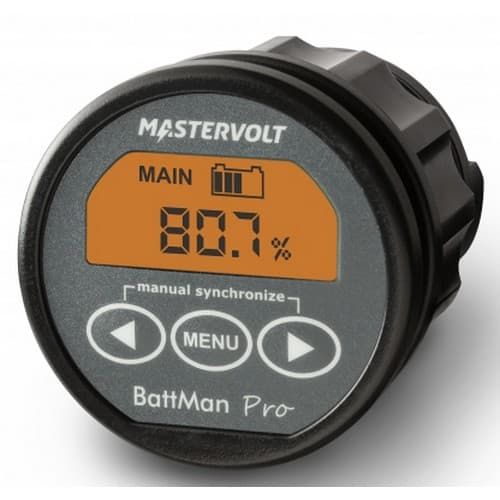

Mastervolt, 70405070, BattMan Pro, incl. shunt

  • Model: 70405070
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary
Price:

$430.18 $330.90

Manufacturer Info

BattMan Pro

Battery monitor, 12/24 V DC with large, splash proof display (IP65) and power bar. Displays remaining time and stores special battery status events.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events.
General specifications
Number of battery outlets2; service (fully), starter (voltage)
Display/read-outvoltage, current, amp-hours, time remaining, battery capacity in %, special battery status events
Languages on displayuniversal
Built-in depth 72.5 mm 2.9 inch
Dimensions 64 mm, depth 79 mm
Dimensions shunt, hxwxd 87 x 45 x 35 mm 3.4 x 1.8 x 1.4 inch
Weight 0.15 kg 0.3 lb
Technical specifications
Max. Ah capacity9999 Ah
Supply voltage9-35 V
Voltage range0-35 V
Current consumption (backlight off)8 mA/12 V, 6 mA/24 V
Current consumption (backlight on)30 mA/12 V, 18 mA/24 V
Voltage resolution0.01 V
Voltage accuracy0.3%
Shunt specification500 A / 50 mV (service set)
Current measurement range0-500 A
Current accurancy0,4 %
Battery alarm contactyes, potential free
Remaining time indicationyes
Historical datayes
MasterBus compatibleno
Connection cable (6-wire) necessaryyes
Modular cable necessaryno
