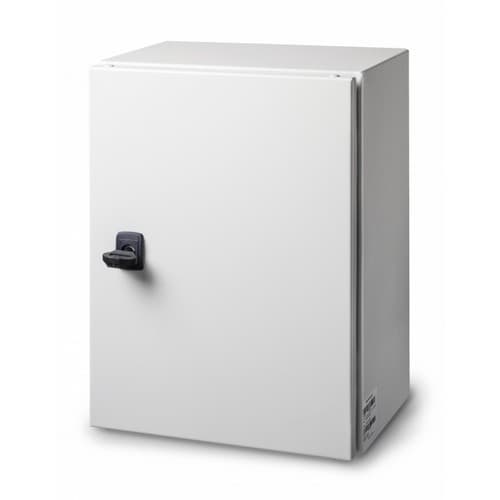

The images shown are for illustration purposes only and may not be an exact representation of the product
Transfer system with Soft Start 6 kW Mastervolt supplies three automatic switching systems for capacities of 6, 9 and 13 kW that - combined with an IVET transformer - adjust grid power to the onboard system. As a result, a 230 V/50 Hz system can easily function with an American or Caribbean AC connection. Do ensure that the frequency on board (50 or 60 Hz) is the same as the frequency of the incoming current.
The Soft Start automatic switch suppresses the inrush current from the isolation transformer to prevent the power fuse from blowing.
|
| General specifications |
| Max. input current | 60 A at 120 V, 30 A at 230 V A |
| Voltage | 120/230 V |
| Power | 6000 W |
| Dimensions, hxwxd | 400 x 300 x 210 mm 15.7 x 11.8 x 8.3 inch |
| Weight | 12 kg 26.5 lb |
