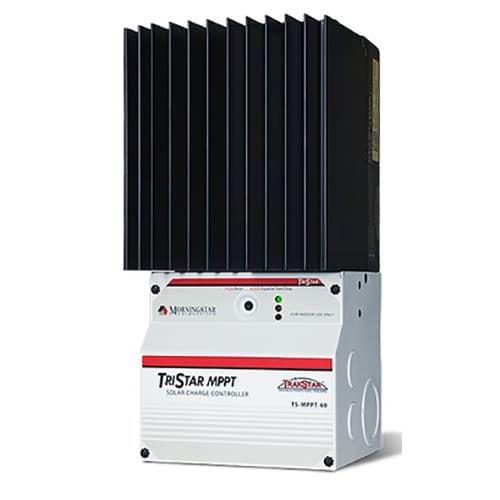

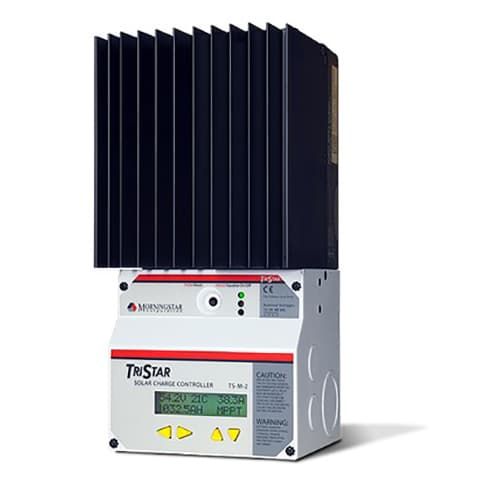

Morningstar’s TriStar MPPT solar controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger foroff-grid photovoltaic (PV) systems up to 3kW.

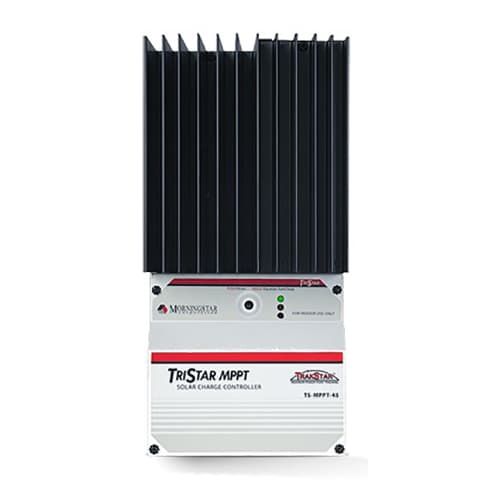

Model Numbers - TS-MPPT-60, TS-MPPT-45, TS-MPPT-30
Key Features and Benefits - Maximizes Energy Harvest
- Extremely High Reliability
- Very High Efficiency
- Extensive Networking and Communication Capabilities
- Metering and Data Logging
- Certified to IEC 62093
- Product Specifications | Download
| TriStar MPPT | TS-MPPT-30 | TS-MPPT-45 | TS-MPPT-60 |
| Maximum Battery Current | 30 amps | 45 amps | 60 amps |
| Nominal Maximum Solar Input |
| 12 volt | 400 Watts | 600 Watts | 800 Watts |
| 24 volt | 800 Watts | 1200 Watts | 1600 Watts |
| 48 volt | 1600 Watts | 2400 Watts | 3200 Watts |
| Nominal System Voltage | 12, 24, 36 or 48 volts DC |
| Maximum Solar Open Circuit Voltage | 150 volts DC |
| Peak Efficiency | 99% |
| Battery Operating Voltage Range | 8-72 volts DC |
| Maximum Self-consumption | 2.7 Watts |
| Transient Surge Protection | 4500 Watts/port |
| Electronic Protection |
| Solar | Overload, Short Circuit, High Voltage |
| Battery | High Voltage |
| Batttery Charging |
| Charging algorithm | 4-stage |
| Charging stages | Bulk, Absorption, Float, Equalize |
| Temperature Compensation |
| Coefficient | –5mV/C/cell (25 ref) |
| Range | –30C to +80C |
| Set Points | Absorption, Float, Equalize, HVD |
| Environmental |
| Ambient Temprature | –40C to +45C |
| Storage Temperature | –55C to +100C |
| Humidity | 100% non-condensing |
| Tropicalization | Epoxy encapsulation Conformal coating Marine rated terminals |
| Communication Ports |
| MeterBus | Yes | Yes | Yes |
| RS-232 | Yes | Yes | Yes |
| EIA-485 | No | No | Yes |
| Ethernet | No | No | Yes |
| Mechanical |
| Dimensions | 29.1 x 13.0 x 14.2 cm 11.4 x 5.1 x 5.6 inch |
| Weight | 4.2 kg / 9.2 lbs. |
| Max. Wire Size | 35 mm / 2 AWG |
| Conduit Knockouts | M20; 1/2, 1, 1 1/4 inch |
| Enclosure | Type 1 (indoor and vented) IP20 |
| Certifications | CE Compliant ETL Listed (UL1741) cETL (CSA C22.2 No. 107.1-01) FCC Class B Part 15 Compliant Complies with (NEC) U.S. National Electric Code RoHS Compliant Manufactured in a certified ISO 9001 facility |
