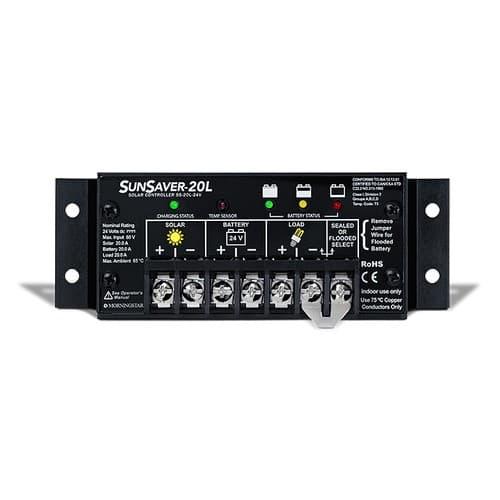

Morningstar, SS-20L-12V, SunSaver-20 amp with LVD (12V)

  • Model: SS-20L-12V
  • GTIN: 00888063781742
  • Manufactured by: Morningstar
  • Condition: New
  • Estimated Delivery: Jul 18th - Jul 24th
  • In Stock
Price:

$188.50 $145.00

Manufacturer Info

Morningstars SunSaver is the worlds leading small solar controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller.

Warranty
  • 5 Years
Model Numbers
  • SS-10L-24V, SS-10L-12V, SS-6-12V, SS-6L-12V, SS-20L-12V, SS-10-12V, SS-20L-24V
Key Features and Benefits
  • Seven versions available
  • 100% solid state
  • Series design (not shunt)
  • True 0 to 100% PWM duty cycle
  • Setpoint accuracy 12V: +/-25mV 24V: +/-48mV
  • Fully encapsulated in epoxy potting
  • Marine rated terminals / anodized case
  • Temperature compensation
  • Sealed / Flooded battery select
  • Parallel for 40 amps or more
  • Product Specifications | Download
SunLight Electrical Specifications12 Volt24 Volt
Rated Solar Input10/20 A
Rated Load10/20 A
25% Current Overload5 min.
Regulation Voltage: Sealed Battery14.1 V28.2 V
Flooded Battery14.4 V28.8 V
Load Disconnect11.7 V23.4 V
LVD Reconnect12.8 V25.6 V
Temp. Comp. (mV/C)-27-54
Self-consumption8 mA9 mA
Operating Temp.-40 to +85C
