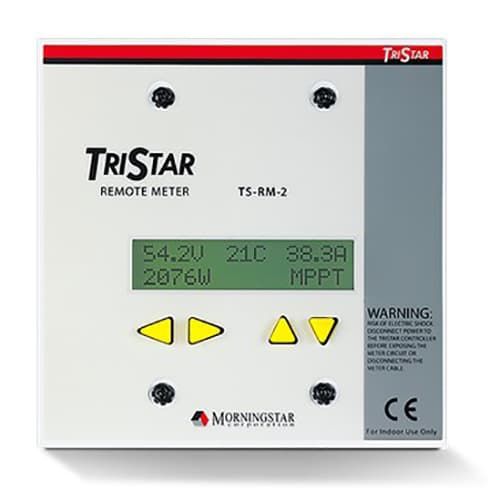

Model Numbers Key Features and Benefits The meter is compatible with the TriStar, TriStar MPPT, TriStar MPPT 600V, and MeterHub. It displays the same data as the TS-M-2, however, it does not mount to the controller. It ships with 30 meters of cable and a flat face plate for convenient mounting away from the controller. The meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance.
| Technical Specifications | TS-M-2 | TS-RM-2 |
| Electrical |
| Self consumption | 7.5 mA / 42.5 mA (backlight on) |
| Mechanical |
| TS-RM-2 Mounting Plate Dimensions | 116 x 116 mm (4.56 x 4.56") |
| Plate Material | powder coated steel |
| Meter weight | 0.23 kg / 0.5 lb | 0.18 kg / 0.4 lb |
| Connector type | RJ-11 (6-pin) |
| TS-M-2 cable | 0.13 m / 5 in - 6 conductor |
| TS-RM-2 cable | 30 m / 98.4 ft - 6 conductor |
| Cable temperaturex | 60C rating |
| Environmental |
| Operating temperature | —40C to +60C |
| LCD temp. rating | —20C to +70C |
| Storage temperature | —55C to +85C |
| Humidity rating | 5 to 95 % (NC) |
| Tropicalization | Conformal coating on both sides of circuit board |
| Certifications | CE Compliant, RoHS Compliant, ETL Recognized Component |
| Compatibility | TS-45, TS-60, TS-MPPT-45, TS-MPPT-60 |
