Manufacturer Info
Model Numbers
The meter will display a great deal of information about the TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance. It is worth the time getting to know your meter!

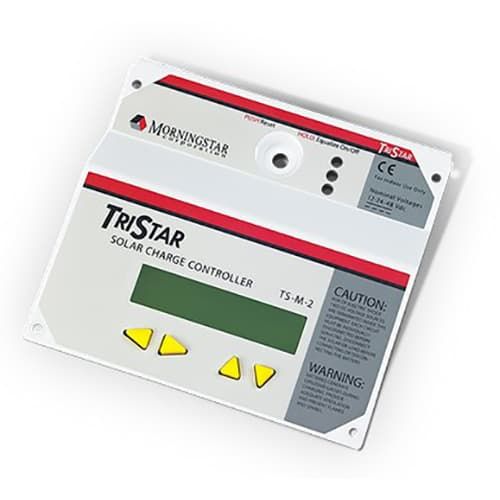

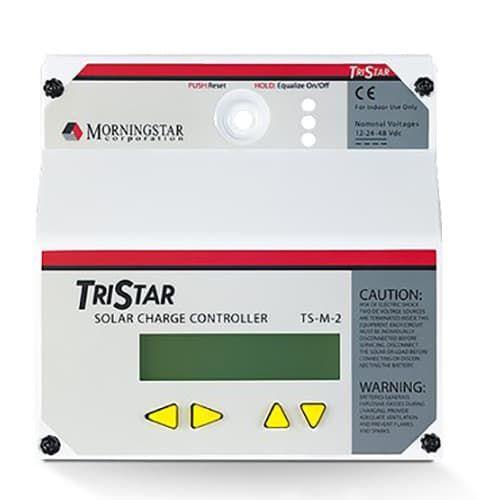

- TS-M-2
The meter will display a great deal of information about the TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance. It is worth the time getting to know your meter!
- Product Specifications | Download
Technical Specifications | TS-M-2 | TS-RM-2 |
Electrical | ||
Self consumption | 7.5 mA / 42.5 mA (backlight on) | |
Mechanical | ||
TS-RM-2 Mounting Plate Dimensions | 116 x 116 mm (4.56 x 4.56") | |
Plate Material | powder coated steel | |
Meter weight | 0.23 kg / 0.5 lb | 0.18 kg / 0.4 lb |
Connector type | RJ-11 (6-pin) | |
TS-M-2 cable | 0.13 m / 5 in - 6 conductor | |
TS-RM-2 cable | 30 m / 98.4 ft - 6 conductor | |
Cable temperaturex | 60C rating | |
Environmental | ||
Operating temperature | —40C to +60C | |
LCD temp. rating | —20C to +70C | |
Storage temperature | —55C to +85C | |
Humidity rating | 5 to 95 % (NC) | |
Tropicalization | Conformal coating on both sides of circuit board | |
Certifications | CE Compliant, RoHS Compliant, ETL Recognized Component | |
Compatibility | TS-45, TS-60, TS-MPPT-45, TS-MPPT-60 |
