Busbars 150, 250 & 600 Amps Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available model - 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections

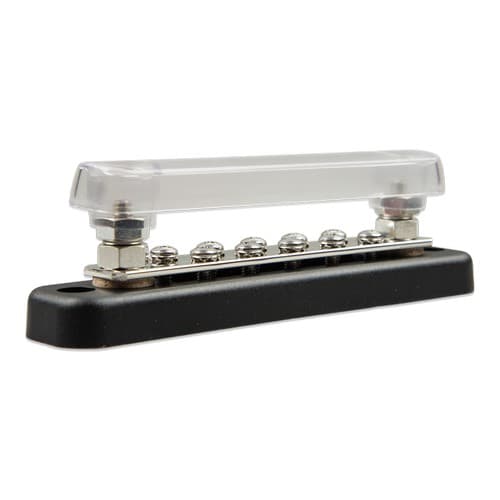

- 150A / 70A - 2P with 10 screws +cover

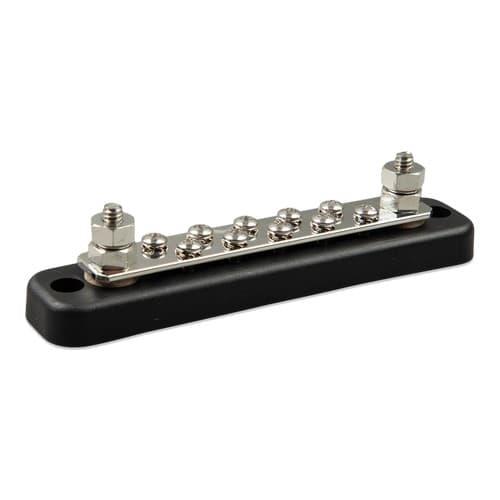

- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
- Busbar 150 A | Download
- Busbar 150 A - 2P with 10 or 20 screws, with cover | Download
- Busbar 250 A | Download
- Busbar 250 A - 2P with 6 or 12 screws, with cover | Download
- Busbar 600 A | Download
- Dual terminal stud M8 | Download
For more technical information and for the busbar dimensions see the datasheet.
