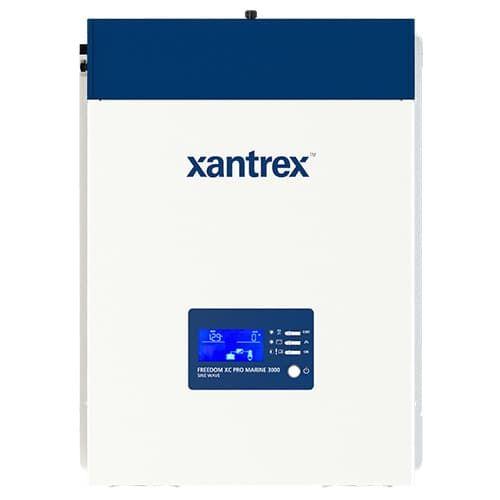

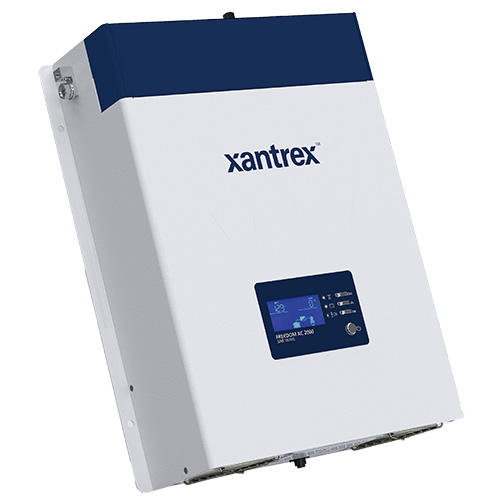

2000W/100A, 3000W/150A A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR
The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) - 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
Inverter Key Features - Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
- Data Sheet - English | Download
- Freedom XC Remote Panel Technical Memo | Download
- Freedom XC PRO Marine Owners Guide - English | Download
- Freedom XC PRO Marine Owners Guide - French | Download
- Freedom X/ XC Remote Panel Owners Guide - English | Download
- Freedom X/ XC Remote Panel Owners Guide - French | Download
- Freedom X/ XC GFCI Option Installation Manual - English | Download
- Freedom X/ XC GFCI Option Installation Manual - French | Download
- Warranty Policy (North America) | Download
- Warranty Policy (Rest of the world) | Download
- NMEA 2000 PGN List | Download
Built-in Charger Features - Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
- Easily configurable settings to charge any lithium ion battery
| Accessories | Part number |
| Freedom X Bluetooth Remote Panel | 808-0817-02 |
| Freedom X/ XC remote panel with 25' Cable | 808-0817-01 |
| GFCI Option | 808-9817 |
| Communication cable 25 ft | 31-6257-00 |
| Communication cable 50 ft | 31-6262-00 |
| Communication Card NMEA 2000 Harness | 808-0840 |
| Models | Part number | Input voltage | AC output |
| Freedom XC PRO MARINE 2000 | 818-2015 | 12V | Hardwire (Optional GFCI) |
| Freedom XC PRO MARINE 3000 | 818-3015 | 12V | Hardwire (Optional GFCI) |
