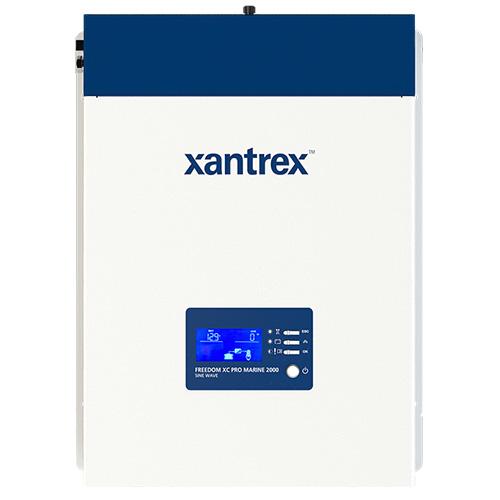

Xantrex, 818-2015, FREEDOM XC Pro 2000 INV/CHARGER, 2000W, 100A, 120VAC/12VDC (Marine)

  • Model: 818-2015
  • GTIN: 00715535912673
  • Manufactured by: Xantrex
  • Condition: New
  • Estimated Delivery: Dec 8th - Dec 14th
  • In Stock
Price:

$1,918.37 $1,475.67

Manufacturer Info

2000W/100A, 3000W/150A

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR

The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) - 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Inverter Key Features
  • Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
  • Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
  • Data Sheet - English | Download
  • Freedom XC Remote Panel Technical Memo | Download
  • Freedom XC PRO Marine Owners Guide - English | Download
  • Freedom XC PRO Marine Owners Guide - French | Download
  • Freedom X/ XC Remote Panel Owners Guide - English | Download
  • Freedom X/ XC Remote Panel Owners Guide - French | Download
  • Freedom X/ XC GFCI Option Installation Manual - English | Download
  • Freedom X/ XC GFCI Option Installation Manual - French | Download
  • Warranty Policy (North America) | Download
  • Warranty Policy (Rest of the world) | Download
  • NMEA 2000 PGN List | Download
Built-in Charger Features
  • Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
  • Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
  • Battery Equalization: Maximizes flooded battery life
  • Dead Battery Charging Down to 0 Vdc
  • Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
  • Easily configurable settings to charge any lithium ion battery
Accessories Part number
Freedom X Bluetooth Remote Panel 808-0817-02
Freedom X/ XC remote panel with 25' Cable 808-0817-01
GFCI Option 808-9817
Communication cable 25 ft 31-6257-00
Communication cable 50 ft 31-6262-00
Communication Card NMEA 2000 Harness 808-0840
Models Part number Input voltage AC output
Freedom XC PRO MARINE 2000 818-2015 12V Hardwire (Optional GFCI)
Freedom XC PRO MARINE 3000 818-3015 12V Hardwire (Optional GFCI)
