The images shown are for illustration purposes only and may not be an exact representation of the product

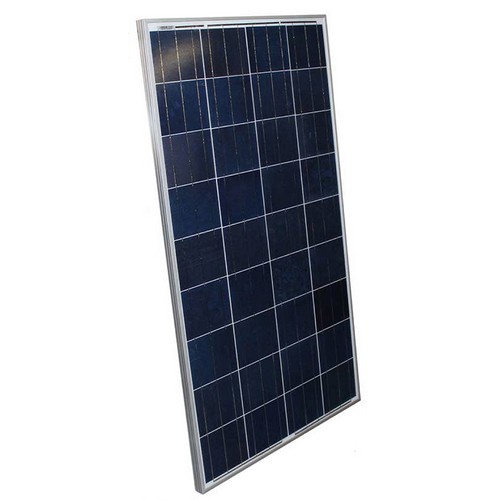

AIMS Power, PV190MONO, 190 Watt Solar Panel Monocrystalline

  • Model: PV190MONO
  • GTIN: 00840271005867
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 23rd - May 29th
  • In Stock
Price:

$263.85 $202.96

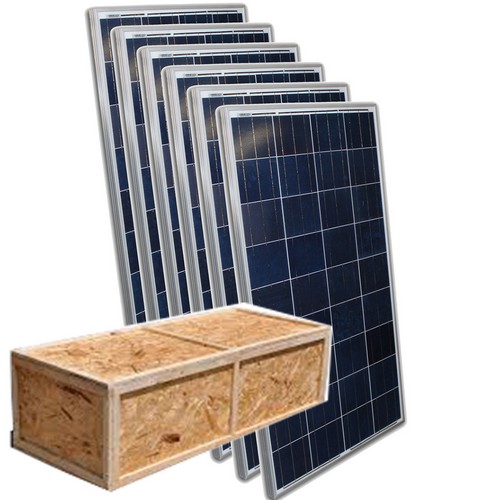

Product Has A Minimum Order Quantity: 6

Manufacturer Info

The 190 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in this panel provide high light transmission and the textured glass allows for a more efficient panel. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, vehicle and RV installations and industrial applications.

Features
  • Monocrystalline efficient solar harvesting
  • Strong surface for harsh environment
  • Panels capable of 0 to +3 Watts over rated capacity
  • Pre-drilled aluminum frame
  • Temperated glass
  • 25 Year limited warranty
  • AIMS Power 190 Watt Solar Panel - PV190MONO | Download
Specifications
  • Maximum Power (Watts): 190 watts
  • (Vmp): 18.7 volts operating voltage
  • (Imp): 10.16 amps operating current
  • (Voc): 22.44 volts open circuit voltage
  • (Isc): 10.92 amps
  • Solar Cell: 156mm x 52mm
  • Number of Cells (pcs): 12*3 = 36
  • Front Glass Thickness (mm): 3.2 mm
  • Temperature Coefficients of Isc (%) °C: -0.048
  • Temperature Coefficients of Voc (%) °C: -0.29
  • Temperature Coefficients of Pm (%) °C: -0.37
  • Temperature Range: -40°C to +80°C
  • Tolerance Wattage: 0-3 watts
  • Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
  • Allowable Hail Load: 45mm at 30.7m/s
  • Bypass Diode Rating (A): 10
  • Cell Efficiency (%): 21.69%
  • Module Efficiency (%): 19.16%
  • Warranty: 91.2% of 12 years, 80.6% of 25 years
  • Weight Per Panel (lbs): 26.5 lbs
  • Dimensions (inches): 58.25 x 26.5 x 1.37
